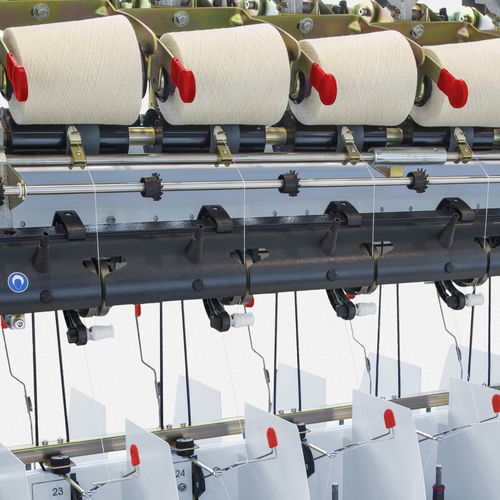

Automatic twisting machine FusionTwister

yarn

The FusionTwister has been developed based on thorough market research, taking into account our customers' requests and specific demands. Therefore the FusionTwister sets new standards in quality and performance and is the logical answer to the current market requirements. Energy efficient spindle family The four spindle types cover the yarn count range from Ne 6/2 to Ne 160/2. The twisting range extends from 123 to 2800 T/m. Cross-wound delivery package 6", tapered to 5°57‘; max. outer diameter 300 mm. VTS-11 Spindle speed up to: 15.000 U/min. Feed package 6", Ø up to 96 mm VTS-10 Spindle speed up to: 14.500 U/min. Feed package 6", Ø up to 125 mm VTS-09 Spindle speed up to: 13.500 U/min. Feed package 6", Ø up to 140 mm VTS-08 Spindle speed up to: 12.500 U/min. Feed package 6", Ø up to 160 mm Highlights • Optimum quality of the cross-wound packages • Reduced energy consumption • High production • Low space requirement • Flexibility & reliability • Low noise level • Short handling & installation time • Easy machine adjustment • Low maintenance • Best cost/performance ratio and more... HD-spindle The HD-spindle creates an efficient yarn balloon geometry that contributes to a high reduction on energy costs compared to traditional spindles. HD-spindles are available for machine types VTS-08 and VTS-10. Different feeding dimensions We have three feeding dimensions for FusionTwister: 6'', 7'' and 8'' for single feeding tubes.
