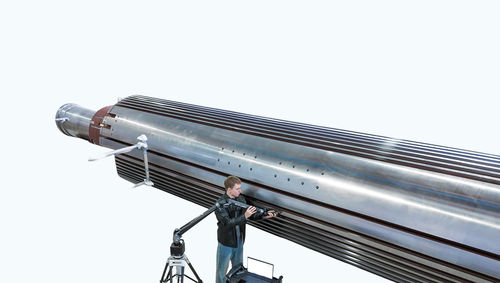

Portable 3D measuring arm AccuArm

6-axis7-axisportable

Product Overview
SCANOLOGY’s AccuArm is a portable Coordinate Measuring Machine (PCMM) designed for precision measurement and inspection across metrology labs and production floors. Its rigid aerospace-grade carbon-fiber arm, high-precision encoders and bearings, and rapid setup make on-site measurement feasible where fixed CMMs cannot operate.

Key Features

• Portable & flexible: lightweight carbon-fiber arm with spring counterbalance for single-person operation and quick on-site deployment.
• ISO 10360-12 certified accuracy for contact measurement.
• Three accuracy grades (S, E, C) and multiple reach options from 1.5 m to 4.5 m.
• 360° joint rotation to eliminate blind spots and reduce repositioning.
• Flexible mounting: compatible with tripods, magnetic bases and vacuum suction cups.
• Hot‑swappable fast-charging batteries and USB Wi‑Fi module for continuous operation and secure data transfer.
• Instant probe swap: change probes without recalibration (plug-and-play).
• Arm+ expandable platform: integrates with handheld 3D scanners, optical 3D systems and photogrammetry.
• Seamless software integration: works with DefinSight and common inspection suites (PolyWorks, Metrolog X4, Verisurf).

Precision Hardware

• High-precision encoder: aerospace-grade encoder for accurate data capture at source.
• High-precision bearings: low-friction mechanical design to minimize wear and drift.

Smart Algorithms

• Automated thermal compensation: real-time correction for arm and part during on-site measurements.
• Automated force compensation: adjusts for probe pressure and orientation changes.
• Multi-frame optimization: reduces random error and increases confidence in point measurements.

Technical Specifications — Contact Measurement Accuracy (Maximum Permissible Error, MPE)
Header: Grade | Working Range | 6-Axis SPAT | 6-Axis EUni | 6-Axis PFORM | 6-Axis PSIZE | 6-Axis LDIA | 7-Axis SPAT | 7-Axis EUni | 7-Axis PFORM | 7-Axis PSIZE | 7-Axis LDIA

S | 1.5m | 0.012 | 0.021 | 0.012 | 0.007 | 0.024 | 0.015 | 0.023 | 0.018 | 0.008 | 0.038
S | 2m | 0.016 | 0.022 | 0.015 | 0.008 | 0.029 | 0.018 | 0.023 | 0.019 | 0.010 | 0.041
S | 2.5m | 0.018 | 0.024 | 0.018 | 0.009 | 0.031 | 0.020 | 0.026 | 0.022 | 0.011 | 0.045
S | 3m | 0.026 | 0.037 | 0.025 | 0.012 | 0.044 | 0.032 | 0.046 | 0.032 | 0.016 | 0.070
S | 3.5m | 0.036 | 0.051 | 0.033 | 0.016 | 0.059 | 0.043 | 0.056 | 0.038 | 0.020 | 0.090
S | 4m | 0.045 | 0.062 | 0.037 | 0.020 | 0.075 | 0.054 | 0.072 | 0.043 | 0.026 | 0.112
S | 4.5m | 0.055 | 0.078 | 0.050 | 0.028 | 0.101 | 0.065 | 0.093 | 0.065 | 0.036 | 0.132

E | 1.5m | 0.018 | 0.025 | 0.016 | 0.009 | 0.028 | 0.020 | 0.024 | 0.020 | 0.011 | 0.043
E | 2m | 0.020 | 0.026 | 0.018 | 0.010 | 0.032 | 0.022 | 0.030 | 0.022 | 0.012 | 0.047
E | 2.5m | 0.023 | 0.028 | 0.021 | 0.012 | 0.036 | 0.026 | 0.031 | 0.024 | 0.013 | 0.050
E | 3m | 0.034 | 0.040 | 0.030 | 0.015 | 0.050 | 0.042 | 0.052 | 0.034 | 0.020 | 0.072
E | 3.5m | 0.043 | 0.054 | 0.037 | 0.019 | 0.064 | 0.055 | 0.065 | 0.042 | 0.024 | 0.092
E | 4m | 0.052 | 0.064 | 0.043 | 0.023 | 0.081 | 0.065 | 0.082 | 0.048 | 0.029 | 0.118
E | 4.5m | 0.061 | 0.087 | 0.078 | 0.038 | 0.108 | 0.073 | 0.097 | 0.082 | 0.043 | 0.137

C | 1.5m | 0.028 | 0.036 | 0.029 | 0.015 | 0.038 | 0.030 | 0.040 | 0.035 | 0.020 | 0.048
C | 2m | 0.030 | 0.040 | 0.035 | 0.018 | 0.041 | 0.035 | 0.045 | 0.040 | 0.025 | 0.052
C | 2.5m | 0.035 | 0.044 | 0.038 | 0.020 | 0.050 | 0.040 | 0.049 | 0.045 | 0.030 | 0.058
C | 3m | 0.055 | 0.064 | 0.047 | 0.028 | 0.078 | 0.060 | 0.069 | 0.049 | 0.035 | 0.089
C | 3.5m | 0.075 | 0.079 | 0.057 | 0.035 | 0.096 | 0.080 | 0.084 | 0.064 | 0.040 | 0.113
C | 4m | 0.090 | 0.098 | 0.067 | 0.044 | 0.114 | 0.095 | 0.103 | 0.074 | 0.050 | 0.138
C | 4.5m | 0.112 | 0.118 | 0.086 | 0.048 | 0.128 | 0.115 | 0.123 | 0.095 | 0.055 | 0.158

Notes: 1. Supports the Arm+ solution for integration with multiple hardware systems. 2. All values represent MPE (Maximum Permissible Error). 3. AccuArm contact measurement is compliant with ISO 10360-12 and specified as EUNI (point-to-point distance error vs nominal).

Characteristics / Technical specifications

• Model name: AccuArm.
• Manufacturer / Brand: SCANOLOGY.
• ISO certification: ISO 10360-12 (contact measurement).
• Accuracy grades: S (Superior), E (Enhanced), C (Classic).
• Reach options: 1.5 m, 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 4.5 m.
• Measurement modes: contact measurement (6-axis and 7-axis variants) with specified MPE tables.
• Structural materials: aerospace-grade carbon-fiber with high-precision encoders and bearings.
• Algorithms: automated thermal compensation, automated force compensation, multi-frame optimization.
• Ergonomics: single-person operation, 360° joint rotation, hot-swappable batteries, plug-and-play probe swapping.
• Mounting: tripod, magnetic base, vacuum suction cup compatible.
• Integration: Arm+ expandable platform; compatible with DefinSight, PolyWorks, Metrolog X4, Verisurf.
