3D scanner KSCAN-E

measurementinspectionlaser

Overview

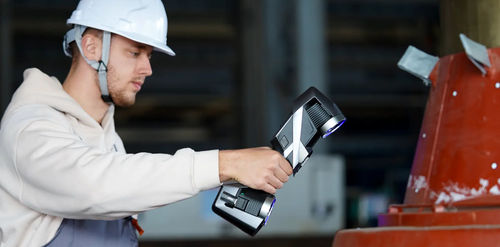

The KSCAN-E is an all-in-one, wireless 3D scanner engineered for industrial measurement tasks such as design verification and quality control. It integrates high-speed scanning, onboard computing and wireless connectivity to enable fast deployment in workshop and field environments.

Key highlights

• Versatile scanning modes for a wide range of part sizes and features
• High-resolution built-in touchscreen for standalone operation
• Fully wireless with built-in battery and dual WNIC for robust transmission
• Quad-cross laser architecture and very high frame rate for rapid point-cloud acquisition
• Accuracy up to 0.020 mm and resolution up to 0.010 mm

Exceptional Accuracy
The system delivers traceable precision for nondestructive inspection and metrology workflows.

• Accuracy: 0.020 mm
• Volumetric accuracy (Standard): 0.015 mm + 0.030 mm/m
• Volumetric accuracy (Integrated photogrammetry): 0.015 mm + 0.015 mm/m
• Volumetric accuracy (Paired with MSCAN-L15): 0.015 mm + 0.012 mm/m

Efficient Measurement
Quad-cross laser technology combined with a high frame rate maximizes measurement throughput and reduces scan time.

• Quad-cross / 4×27 quad-cross blue laser lines (108 blue laser lines in ultra-fast mode)
• Frame rate: 180 fps
• Scanning throughput: up to 8,290,000 measurements/s

Excellent Detail Capture
Parallel blue laser lines and high-performance industrial cameras enable hyper-fine capture of small features and surface details.

• Hyperfine scanning: 17 blue parallel laser lines
• Resolution up to 0.010 mm
• Ideal for gaps, slots, gear teeth and mold features

Scan anything, anytime
Multiple scan modes cover large areas, fine details and difficult geometries:

• Ultra-fast scanning (108 blue laser lines)
• Hyperfine scanning (17 parallel blue laser lines)
• Large-area scanning (38 crossed infrared laser lines)
• Deep-hole scanning (1 extra blue laser line)
• Hole & edge scanning (smart edge inspection)
• Adaptive photogrammetry for large-scale volumetric accuracy

Fully Wireless & Portable
Designed for one-handed use and field deployment: lightweight, built-in computing module, dual power cycles, dual WNIC and quick calibration. One-click scanning enables rapid operation without a PC.

Exceptional user experience

• Transport: compact carry-on sized protective case; optional case for scale and accessories
• Wireless connection: start device and router — no cables required
• Quick calibration: 20 seconds
• One-click scanning: smart button control for stand-alone use

Software
Compatible with DefinSight metrology software for real-time meshing, advanced inspection workflows, fast data processing and an intuitive UI.

Technical specifications

• Model: KSCAN-E
• Accuracy: 0.020 mm
• Resolution: up to 0.010 mm
• Scanning throughput: up to 8,290,000 measurements/s
• Scan modes: Ultra-fast / Hyperfine / Large-area / Deep-hole / Hole & edge / Adaptive photogrammetry
• Ultra-fast laser lines: 108 (Quad Cross)
• Hyperfine laser lines: 17 parallel blue lines
• Large-area laser lines: 38 infrared crossed lines
• Scanning area: up to 1440 × 1000 mm
• Object size range: 0.05 m to 8 m
• Working distances: 150 mm–1500 mm (mode-dependent)
• Connection: USB3.0 Type-B, Wi‑Fi 6 (Dual WNIC)
• Battery & power: Built-in battery with dual power cycles and support for uninterrupted power supply
• Dimensions: 344 × 124 × 99 mm
• Environment: -10°C to 40°C, 10–90% RH, IP50
• Laser class: Class II (eye-safe)
• Patent: Multiple national and international patents (manufacturer listings: CN, US, KR)
