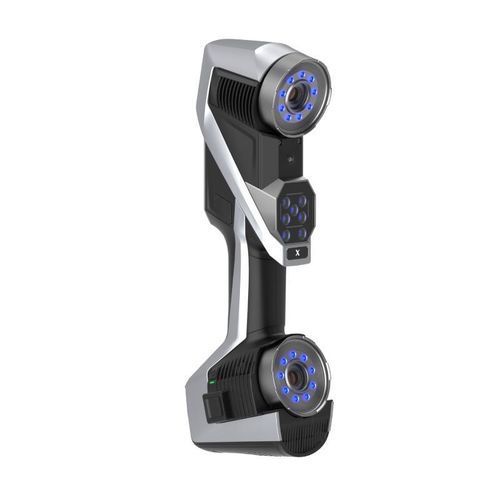

3D scanner KSCAN-X

measurementinspectionlaser

Overview
Powered by SCANOLOGY's advanced wireless architecture and adaptive photogrammetry, the KSCAN-X is a large-area, intelligent 3D scanner designed for ultra-large, large and medium-size parts. It combines an ultra-wide scanning area, extended depth of field and high throughput to support efficient quality control and dimensional inspection in aerospace, heavy industry, rail and advanced manufacturing.

Highlights

• Wireless, intelligent large-area 3D scanning
• High-speed quad-cross blue laser scanning
• Ultra-large scan area and extended depth of field
• Dedicated deep-hole measurement capability
• On-board processing and dual-battery continuous operation
• Adaptive photogrammetry for consistent volumetric accuracy

Key features

• Scanning area up to 2600 mm × 1800 mm for ultra-large parts
• Working distance range: 0.30–2.50 m (extended depth of field)
• Multiple scan modes: Large-FOV (84 blue laser lines), Medium-distance (54 / 27 blue laser crosses), Deep-hole (extra blue laser line)
• High accuracy: medium-distance up to 0.030 mm; large-FOV up to 0.075 mm
• Volumetric accuracy: 0.075 mm + 0.010 mm/m (when paired with an 800 mm high-precision scale bar)
• Throughput up to 6,450,000 measurements/s and frame rates up to 180 FPS
• Recommended object size range: 0.5 m to 15 m
• Eye-safe laser: Class II
• Resolution up to 0.1 mm

Truly wireless design & on-board processing

• Robust on-board processing module for large data handling
• Dual-battery system for uninterrupted cable-free operation
• Dual-WNIC design for stable, high-speed wireless transfer (Wi‑Fi 6)
• Supports intelligent wireless modes and uninterrupted power supply

Faster and smoother scanning

• Quad-cross blue laser lines (4×21 in Large-FOV mode) for efficient wide-area capture
• High scanning rate and frame rate reduce marker requirements and speed acquisition

Portable & Easy to Use

• Compact, lightweight design with protective transport case and optional accessory case
• Wireless setup with no cables for field and workshop use
• Fast calibration: ~20 s quick calibration on site
• One-touch smart controls for key functions without a computer

Intuitive & Adaptive

• Built-in touchscreen and guided interface for straightforward operation
• Phone holder and configurable C1 button for adaptive control

Software
Compatible with an all-in-one metrology platform to enable 3D scanning, inspection workflows and efficient data processing.

Technical specifications

• Type: KSCAN-X
• Scan modes: Large-FOV (84 blue laser lines); Medium-distance (54 / 27 blue laser crosses); Deep-hole (extra blue laser line); Adaptive photogrammetry
• Accuracy: Medium-distance: 0.030 mm; Large-FOV: 0.075 mm
• Volumetric accuracy: 0.075 mm + 0.010 mm/m (paired with 800 mm high-precision scale bar)
• Scanning rate: up to 6,450,000 measurements/s
• Scanning area: up to 2600 mm × 1800 mm
• Working distance: 0.30 – 2.50 m
• Object size: 0.5 m – 15 m
• Laser class: Class II (eye-safe)
• Resolution: up to 0.1 mm
• Dimensions: 344 mm × 124 mm × 99 mm
• Inter-camera distance: 235 mm
• Interface: USB 3.0 Type-B
• Wireless: Wi‑Fi 6 (802.11a/b/g/n/ac), Dual WNIC supported
• Intelligent wireless mode: supported
• Uninterrupted power supply: supported
• Environment: Fanless, suitable for workshop environments
• Operating temperature: -10 ~ 40 ℃
• Operating humidity: 10–90% RH
• Protection rating: IP50
• Patents: multiple CN/US/KR registrations (manufacturer listed)
• Notes: Performance evaluated per ISO / JJ F / VDI/VDE standards; volumetric accuracy tested with 800 mm high-precision scale bar
