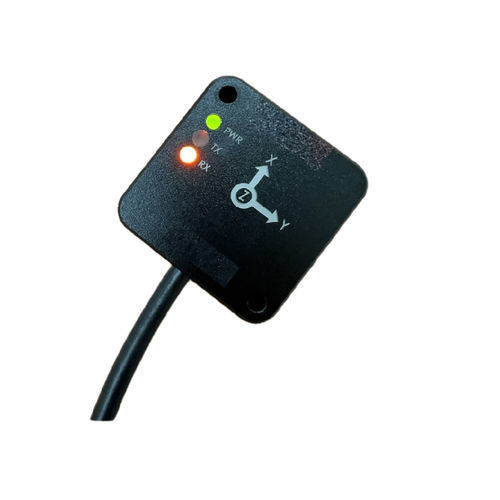

Vibration monitoring system VS202

diagnosticbenchtopRS-485

The VS202 is the highly accurate and cost-effective machine health monitoring system. It assembles several vibration sensors with built-in intelligent computing functions, which can actively sense the health status of equipment, and transmit the computing results to the field control system via open transmission protocols. It is a RS485, triaxial (X, Y and Z), high-bandwidth, smart vibration sensor, which can instantly diagnose the health status of machine. The built-in time domain data cleaning and RPM identification functions can handle the monitoring and diagnosis of variable frequency rotating machine and non-rotary equipment easily. Providing early warning diagnosis and remaining life estimation of components in high-speed rotating machine. Compliant to ISO 10816. Built-in intelligent computing the energy of fail-modes such as unbalance, misalignment, looseness, bearing defect, gear mesh defect, van pass defect Applicable health monitoring on equipment, such as water or vacuum pump, blower, exhaust fan, roller conveyor belt, warehouse robots, AGV, AMR and robotic arms. IP65 sealing protection.
