Radio frequency access point 2000 series

ProfiNetradio data transmission

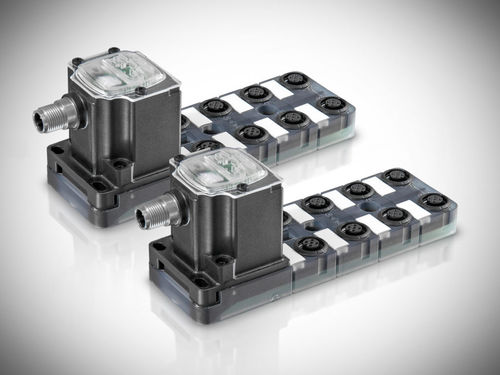

DATAEAGLE 2000 – enabling wireless transmission of IO and Fieldbus signals With the DATAEAGLE 2000 series, you can set up wireless IO-IO, IO-Fieldbus, or Fieldbus-Fieldbus communication. They function as basic devices and are combined with different IO cards or Fieldbus interfaces to obtain a robust wireless solution. With different transmission technologies, these devices can transmit data over distances of up to 3 km. Depending on the housing and the support of different Fieldbus options, the devices are available in Compact, X-treme, or Classic version. With certain combinations of these versions, different types of solutions are possible, such as wireless IO solutions, wireless Fieldbus converter, and IoT solutions. Wireless PLC / IO – DATAEAGLE X-treme IO 2730 The IP67 rated device is suitable for transmission over a distance of up to 70 m. It is equipped with Bluetooth Low Energy for higher transmission capacity thanks to wider bandwidth and it has different options for IO communication. This plug-and-play solution has an integrated antenna and is available in different sets. Different plug-and-play sets of the DATAEAGLE X-treme IO 2730: 8DI ↔ 8DO 4DI ↔ 4DO 4DI 4DO ↔ 4DI 4DO 4AI 4AO ↔ 4AO 4AI 4-20 mA 4AI 4AO ↔ 4AO 4AI 0-10 V An individual unit can communicate wirelessly with: DATAEAGLE X-treme IO 2730 (for wireless transmission of digital and analog signals) DATAEAGLE Compact 2730 (for wireless transmission to a Fieldbus system or for an IoT solution)
