stripping and crimping machine with sealing / for wires / automatic / pneumatic

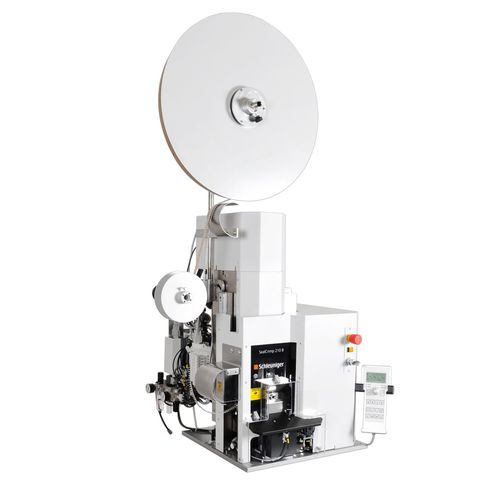

SealCrimp 210 B

{{requestButtons}}

Characteristics

  • Product handled:

    for wires

  • Operational mode:

    automatic

  • Drive type:

    pneumatic

  • Other characteristics:

    with sealing

  • Crimping force:

    20 kN

  • Diameter:

    Max.: 6 mm

    Min.: 0 mm

Description

Overview

The SealCrimp 210 B is a highly flexible benchtop machine for stripping, sealing, and crimping a great variety of different wire sizes up to 2.5 mm². The machine can process a great variety of crimp terminals and seal types including mini seals and hard-shell seals. Due to its modular design it can also be used as a stripper, stripper-crimper, or a crimping machine.

High output
Flexible use: selectable operating modes
Short change-over times
Precision & repeatability
Simple operation
The SealCrimp 210 B is a benchtop machine for stripping, sealing and crimping wires. Designed to meet high quality requirements, the machine comes standard with crimp height fine adjustment, zero cut function and carrier strip cutter. Precision mechanics and reliable components guarantee high repeatability and short cycle times. Changing from one application to another is fast and simple with modular seal kits, a quick-change clamping system for crimp applicators and an exchangeable stripping cassette that can be equipped with either V-blades or die blades. Stripping, Sealing and Crimping can be selected individually. The order in which processes are executed is programmable. When inserting a wire, a sensor automatically triggers the machine cycle. Alternatively, the machine cycle can also be activated by using an optional foot pedal.
