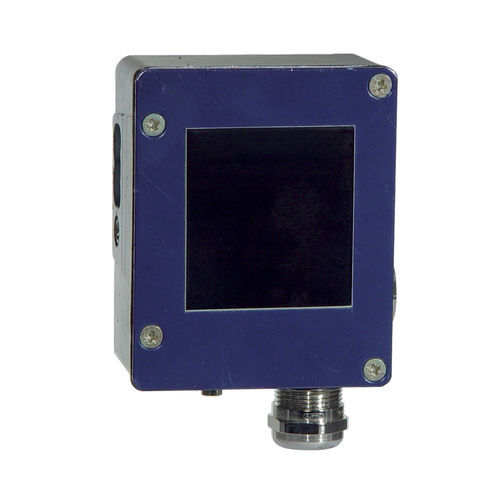

Multipole switch EX-AZ 415-11/11ZPK-3Dexplosion-proofIP67ATEX
Add to favorites
Compare this product
Characteristics
- Number of poles
- multipole
- Protection level
- explosion-proof, IP67, ATEX
- Other characteristics
- with separate actuator, electromechanical, safety, latching
- Primary current
4 A, 6 A
- Voltage
4 kV
- Diameter / length
46.5 mm
(1.8 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Width
103.6 mm
(4.1 in)- Height
84.6 mm
(3.3 in)
Description
Adjustable ball latch to 500 N
2 switches with different actuating functions in one enclosure
103.6 mm x 84.6 mm x 103.6 mm
2 cable entries M 20 x 1.5
Spring-loaded actuators
High level of contact reliability with low voltages and currents
Metal enclosure
Long life
Catalogs
No catalogs are available for this product.
See all of SCHMERSAL‘s catalogsOther SCHMERSAL products
Devices for Ex Zones
