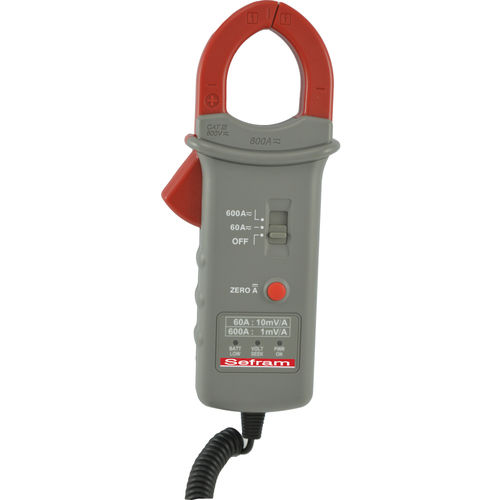

Current transducer (10 mV-1 mVAC+DC/1 AAC+DC, 600 A, 35 mm jaw opening
Model SP260B
•Jaw opening: 35 mm
•AC Current range: 600A
•DC Current range: 600A
•Range switch 60A and 600A
•Voltage detection function
•Zero adjust for DC current
•Output voltage 10mV/1A and 1mV/1A
•Bandwidth DC, AC 40Hz to 400Hz
•Safety : 600 V CAT III / 1000 V CAT II
Range Output Ratio Accuracy
60A 10mV/A ±(2.0% +0.4A)
600A 1mV/A ±(2.0% +2A)
Position Error of Clamp ± 1.5% of reading
Temperature coefficient 0.2 x (Specified accuracy) / °C,
28°C
Frequency Response DC,AC 40Hz to 400Hz
Output Impedance < 10kΩ
Overload Protection 600A AC/DC
Maximum Conductor Size 35mm
Battery life (based on Alkaline Battery) 45 hours
Power requirement 9Vx1 battery
The meter automatically turns the power off
after powering Auto power Off up and no operation
for 35 ± 10minutes.
Type of sensing Hall effect sensing for AC and DC
Installation Category 600V - CAT III / 1000V - CAT II
Pollution Degree 2
Shock vibration MIL-PRF-28800F for A class 2 Instrument
0°C to 30°C, HR ≤80%
Operating temperature 30°C to 40°C, HR ≤75%
40°C to 50°C, HR ≤45%
Storage temperature -20to 60°C, 0 to 80% H.R (without battery)
Maximum operating altitude 2000 meter
Dimension 82 mm x 208 mm x 41 mm
Wheight 360g (with battery)
Warrenty 1 year
