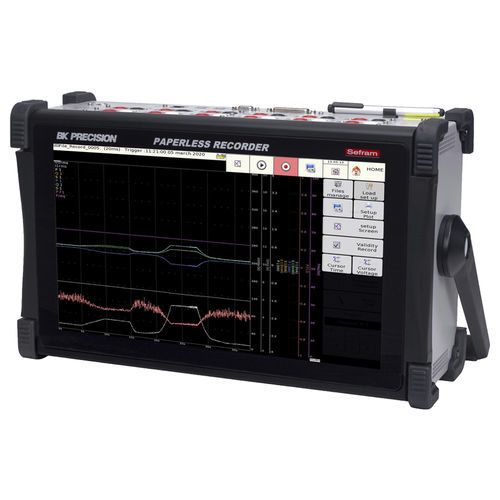

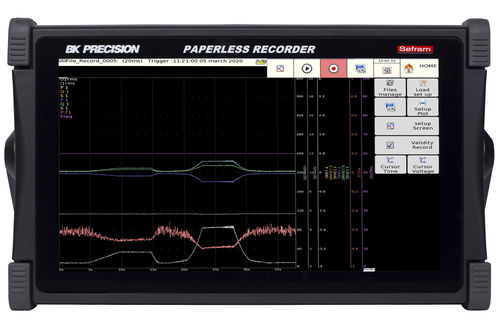

Temperature data acquisition system DAS1700

voltagepowerportable

The Data Acquisition Solution DAS1700 is a High-Speed Recorder that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V; 4-20 mA). You can set up your own channel configuration by choosing from the 4 input boards available: Universal Board, Universal High Voltage board, Strain Gauge board and Multiplexed boards. With suitable channel configuration you can record from 6 up to 72 channels and 16 logic inputs. Long term measurements with a sampling rate of 1 MSa/s (1 µs) are possible in taking full advantage of the 500 GB internal hard disk memory. With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50 Hz, 400 Hz and 1 kHz). This Data Acquisition Solution can be remotely controlled by Ethernet or WiFi connection and the results can be analysed on license-free software developed by Sefram. DAS1700 combines autonomy, power and simplicity to provide you the right answer to your recording needs. Common features: TFT panoramic LCD touch screen (15"6) 6 to 72 analogue channels Up to 6 measurement boards with extension 16 logic channels 128 Mword memory, with segments Internal hard disk : 500 GB Intuitive man-machine interface Power Analysis function (50 Hz, 400 Hz and 1 kHz) Interfaces : 4 x USB, Ethernet, VGA Various measurement functions Remote control Supplied with licence free Sefram Viewer software for data transfer and analysis Safety: 600V CAT III (depending on boards) 6 isolated input universal board: 6 isolated analogue channels 14-bit, 1 MSa/s, Bandwidth: 100 kHz DC, RMS AC+DC Voltage (+-500 V)
