Polyester fiber CQX series

carboncut

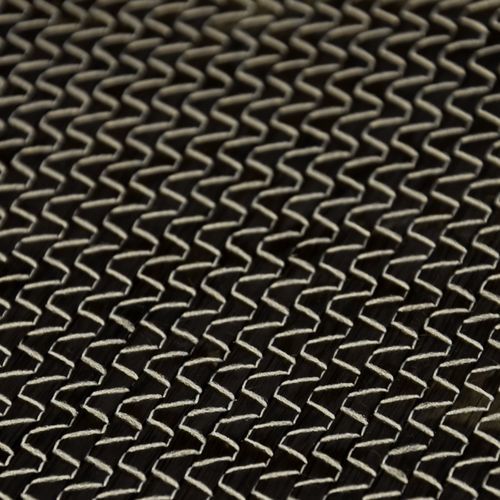

Quadriaxial Non Crimp Fabrics (NCF) in carbon fiber, are made up of layers with parallel fibres laid in 4 orientations, stitched with texturized polyester yarn. The most commonly used Quadriaxial Non Crimp Fabrics (NCF) are oriented at 0º+45º90º-45º. It’s also possible to have ±30º or ±60º orientations on request. The longitudinal direction of 0° is always the direction of the length of the roll and the stitching direction. Quadriaxial Non Crimp Fabrics (NCF) are produced in a standard width from 1270mm to 2540 mm and, or they can be cut in tapes without the fibres fall apart. Currently the know-how developed over the years has allowed the production of a range of Quadriaxial Non Crimp Fabrics (NCF) ranging from 300 gr/M² to 800 gr/M². Resin Compatibility Carbon fibers used for the production of our multiaxial – non crimp fabrics are coated with a broad range of sizing to provide compatibility with multiple resin systems. Selcom Multiaxial – Non Crimp Fabrics (NCFs) are manufacured to meet the individual needs of our customers. All the fabrics can be based on the final application in order to deliver the expected performance. Fiber orientation Selcom Multiaxial – Non Crimp Fabrics (NCFs) are made up of layers with parallel fibres laid in different orientations, stitched with texturized polyester yarn. The most commonly used Multiaxial - Non Crimp Fabrics (NCF) are oriented at ±45º or 0º90º,but it’s also possible to have ±30º or ±60º on request. The longitudinal direction of 0° is always the direction of the length of the roll and the stitching direction.
