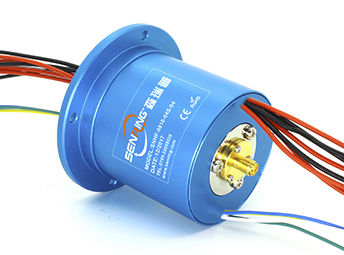

Signal transmission electrical rotary joint HF0218-64 Seriesfor radar antennasmulti-channelRF channel
Add to favorites
Compare this product
Characteristics
- Type
- signal transmission
- Applications
- for radar antennas
- Other characteristics
- multi-channel, RF channel
- Voltage
Min.: 0 V
Max.: 440 V
- Rotational speed
60 rpm, 250 rpm
(377 rad.min-1, 1,571 rad.min-1)- Number of channels
2 unit
Description
2 channels, channel 1:DC~18GHz, channel 2:DC~4.5GHz,1~24 circuits signal(2A),OD 64mm
SENRING HF0218-64 series dual channel DC~18GHz high frequency rotary joint slip ring,SMA-K/SMA-K connector,rotating speed 60RPM。HF0218-64 can be combined to transmit power, analog and digital signals,electrical signals (1-24 wires),high frequency(DC~4.5G
Features
RF Channel: 2 channels,signal/power channel: 1~24 channels；
Frequency: DC~18GHz+DC~4.5GHz；
Low insertion loss and voltage standing wave ratio；
Application for satellite Antenna,Ship-borne,vehicle,radar,Microwave antenna test bench....etc;
It is used in the 360° continuous rotation devices to transfer high frequency signals;
Integrated structure, easy installation；
