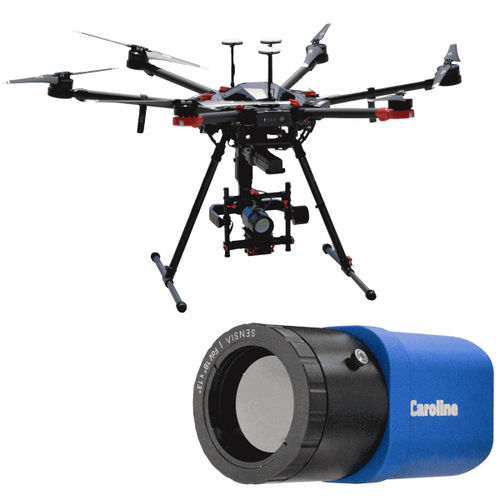

Digital camera Caroline Y ON-BOARD

for UAVssurveillancefor gas leak detection

Caroline Y ON-BOARD is SENSIA’s latest model of Optical Gas Imaging (OGI) for unmanned aircrafts surveys. This thermal camera based on an Uncooled Vox detector, is able to detect fugitive emissions of methane (CH4), SO2 and VOC’s leaks down to 1,4 g/h os CH4. The system integrates an on-board computer with Redlook Software which runs the gas imaging processing algorithMs for gas detection. Base Specifications Field of view : 18º x 13º Detector : Uncooled 640 x 480 px Spectral region : LWIR Pixel Pitch : 17 μm Raw video data : 14 bits NETD : <22mK @ +30ºC MDLR (for CH4)* : 1,4 g/h Electrical : <3 W Voltage : 5 V (USB) Data : USB Material : 6068 aluminum Max. Dimensions : 66 x 77 x 110 mm Weight : 640 kg Mechanical interface : 1/4” UNC Operating Temperature Range : -10ºC to +50ºC Storage Temperature Range : -40ºC to +71ºC Maximum relative humidity : 95% Certifications : EMC (EN 61326:2013) : IP 65 (EN 60529:2018)
