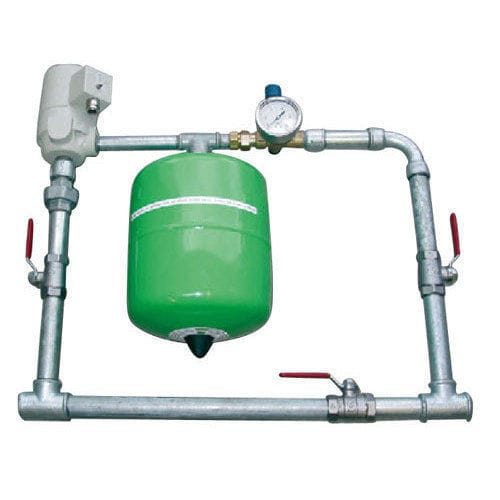

Dosing station

Overview
Water and steam dosing units for controlled addition of water and steam in industrial processes. Ready-to-install assembled units compatible with Novatronic control components.

Water dosing units

• Throughput with piston lift 1 mm: at 1.0 bar 0–500 l/h; at 3.0 bar 0–2,500 l/h
• Throughput with piston lift 2 mm: at 1.5 bar 0–1,250 l/h; at 3.0 bar 0–2,500 l/h
• Connection: 3/4"
• Delivered ready-to-install, assembled

High-capacity water variants

• Sizes: DN 15–DN 50
• Throughput at 3.0 bar: 1,800–15,500 l/h
• Electro-pneumatic proportional regulating valves recommended for sensitive lines or high throughput
• Delivered ready-to-install, assembled

Steam (damp) dosing units

• Sizes: DN 25–DN 65 with electro-pneumatic proportional regulating valves
• Additions at 8 bar: 625–3,750 kg/h
• Delivered ready-to-install, assembled

Novatronic compatibility

• Compatible with Novatronic C control unit and plasticity sensor
• Components proven in over 800 installations worldwide

Technical specifications

• Product: Water and steam dosing units
• Water throughput (piston 1 mm): 0–500 l/h (1.0 bar); 0–2,500 l/h (3.0 bar)
• Water throughput (piston 2 mm): 0–1,250 l/h (1.5 bar); 0–2,500 l/h (3.0 bar)
• Water connection size: 3/4"
• Water variant sizes: DN 15–DN 50 (3.0 bar: 1,800–15,500 l/h)
• Steam sizing: DN 25–DN 65
• Steam additions (8 bar): 625–3,750 kg/h
• Valve technology: electro-pneumatic proportional regulating valves
• Delivery state: ready-to-install assembled units
• System integration: compatible with Novatronic C and plasticity sensor
