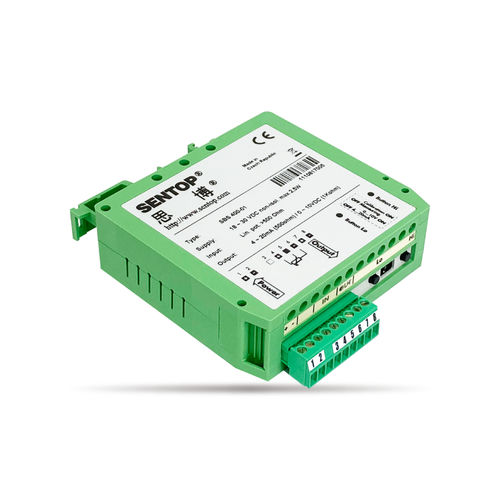

Analog signal converter SBS400

DIN rail

Product overview
SBS400 signal converter for industrial measurement and control applications.

Key features

• Configurable output: 0–10V or 4–20mA
• High accuracy (±0.01%) and 16-bit resolution
• DIN-rail mounting, compact PA66 housing, IP20 protection

Dimensions
Dimension drawing available (file name: 尺寸图_SENTOP_SBS400.jpg).

General mechanical specifications
Protection degree: IP20
Pollution and safety level: Pollution degree II, CAT.III
Installation: 35 mm DIN-rail (DIN EN 50022)
Housing material: PA66 (non-flammable, green)

Environmental specifications
Operating temperature: -25℃~+60℃
Storage temperature: -25℃~+85℃

General electrical specifications
Resistance range: 100Ω~500Ω
Supply voltage: 18~30VDC ±10%
Output signal: 0~10V / 4~20mA (configurable)
Max power rating: 2.5W
Accuracy: ±0.01%
Load resistance: >1KΩ (voltage output), <500Ω (current output)
Resolution: 16bit
Temperature coefficient: Max.10ppm
Dielectric strength: 1500V A.C. / 1 min
Response time: 0.2ms
Ripple: 5mV residual at 10V output

Documentation
Technical datasheet and dimension drawing available for download.

Technical specifications (summary)

• Model: SBS400
• Type: Signal Converter
• Output: 0~10V or 4~20mA (configurable)
• Supply voltage: 18~30VDC ±10%
• Protection: IP20
• Accuracy: ±0.01%
• Resolution: 16bit
• Operating temperature: -25℃~+60℃
