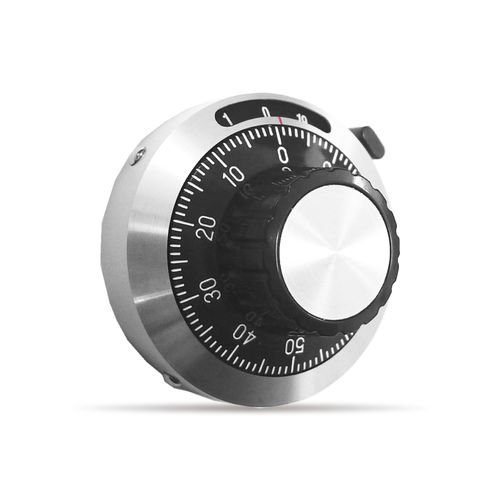

Mechanical with position indicator control knob MF series

Product overview

• MF series analog-readout dials for multi-turn visual position indication on potentiometers and rotary controls

Key features

• Analog readout for visual turn counting
• Lock device on selected models
• Patented flexible coupling (model-dependent)
• Wide operating temperature: -30℃ to +60℃
• Lightweight construction (approx. 15–50 g depending on model)

Dimensions
Dimension drawing available for MF (file: 尺寸图_SAKAE_计数旋钮_MF.jpg).

Models and specifications

• MF10-15B
  Number of turns: 10
  Matching shaft dia. (mm): Standard 3; Special 3.175, 4
  Compatible helical-ohm potentiometers (shaft length 25 mm): 10HP, 25HP, 12HP, 12HHP, 12HPC
  Patented flexible coupling: Yes
  Lock device: Yes
  Operating temperature: -30℃ to +60℃
  Mass: approx. 15 g
• MF10-15BD
  Number of turns: 10
  Matching shaft dia. (mm): Standard 3; Special 3.175, 4
  Compatible helical-ohm potentiometers (shaft length 25 mm): 10HP, 25HP, 12HP, 12HHP, 12HPC
  Patented flexible coupling: No
  Lock device: Yes
  Operating temperature: -30℃ to +60℃
  Mass: approx. 15 g
• MF20-22B
  Number of turns: 20
  Matching shaft dia. (mm): Standard 6; Special 3, 3.175, 4, 6.35
  Compatible helical-ohm potentiometers (shaft length 25 mm): 10HP, 12HHP, 12HP, 12HPC, 25HP, 20HHP, 20HP, 46HD, 22HHP, 22HP
  Patented flexible coupling: Yes
  Lock device: Yes
  Operating temperature: -30℃ to +60℃
  Mass: approx. 17 g
• MFn-46B
  Number of turns: 3, 5, 10, 20
  Matching shaft dia. (mm): Standard 6; Special 6.35
  Compatible helical-ohm potentiometers (shaft length 25 mm): 20HP, 25HP, 20HHP, 22HP, 46HD, 22HHP
  Patented flexible coupling: Yes
  Lock device: Yes
  Operating temperature: -30℃ to +60℃
  Mass: approx. 50 g

Download
Product brochure (PDF) available.
