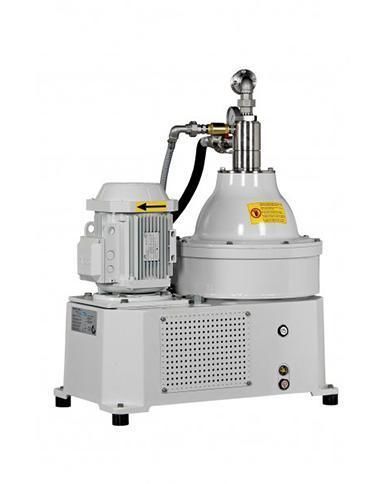

Laboratory centrifuge

for pharmaceutical applicationsfor the food industryfor petroleum products

Description
The MACFUGE disk centrifuges with automatic discharge are designed and built to separate a mixture of liquids having different specific weight and a solid. The bowl “self-cleaning” or “with automatic discharge” means the capacity of the centrifuge to eject the solids, which have been separated from the liquids, using a hydraulic system in the bowl bottom while running at full speed. These machines are simple and offer different configurations according to process requirements. The MACFUGE centrifuges are reliable, user-friendly, easy to dismount for maintenance and cleaning and allow their use in any process industry that requires fluid separation. They can be manufactured in any material and to operate in areas classified CE-ATEX. Within the range of MACFUGE with automatic discharge of small size, there are MACFUGE MODULAR SYSTEMS: each system is a complete plug-and-play skid-mounted module, a small transportable unit for fluid separation, clarification and purification on a small scale.

Operation / Functioning
The product to be separated enters inside the bowl via a fixed feed pipe. The discharging functions are executed at time intervals pre-determined by the operator through a PLC in the control panel. The opening time (volume discharged) and the discharge frequency are regulated by setting the times of opening and closing of the solenoid valves. Depending on the time setting, the machine can achieve both partial and total discharge of the bowl content. The efficiency of the centrifuge depends on mixture characteristics: viscosity, temperature, amount of solid and difference between the densities of the various phases all significantly affect separation.

Applications

• Power generation
• Oil & Gas
• Marine
• Biodiesel
• Vegetable oils refinery
• Chemical products
• Food products
• Pharmaceutical
• Soaps
• Dairy
• Brew
• Juice

Customization
MACFUGE offers experience in treating products with different characteristics and requirements; the Technical Department studies specific projects for each application and can manufacture machines in various materials and configurations to meet process needs.

Models and main data
Macfuge 260
Bowl: Rotation speed 9.600 rpm
Motor: Power 3 Kw
Dimensions: mm 370 X 680 X h. 780

Macfuge 325
Bowl: Rotation speed 8.500 rpm
Motor: Power 5,5 Kw
Dimensions: mm 600 X 900 X h. 1200

Macfuge 450
Bowl: Rotation speed 7.600 rpm
Motor: Power 15 Kw
Dimensions: mm 760 X 1250 X h. 1600

Macfuge 590
Bowl: Rotation speed 5.800 rpm
Motor: Power 22 Kw
Dimensions: mm 1000 X 1500 X h. 2000

Macfuge 680
Bowl: Rotation speed 4.700 rpm
Motor: Power 37 ÷ 45 kW
Dimensions: mm 1050 X 2000 X h. 2100

Macfgue 710
Bowl: Rotation speed 4.800 rpm
Motor: Power 30 kW
Dimensions: mm 1300 x 1900 x h. 2300

Macfuge 711
Bowl: Rotation speed 5.300 rpm
Motor: Power 30 KW
Dimensions: mm 1300 X 1900 X h. 2300

Caractéristiques / spécifications techniques

• Type: Disk centrifuge with automatic (self-cleaning) discharge
• Discharge system: Hydraulic discharge at bowl bottom controlled while running at full speed
• Control: PLC-managed discharge timing (opening time and frequency) via solenoid valves; supports partial and total discharge
• Materials: Can be manufactured in various materials to suit process requirements
• Certification/area rating: Options for CE-ATEX certified versions
• Modular option: MACFUGE MODULAR SYSTEMS — skid-mounted, plug-and-play modules for small-scale separation/clarification/purification
• Factors affecting performance: viscosity, temperature, solids concentration, and density differences between phases
• Available model examples and typical specs: see model list above (rotation speeds, motor powers and dimensions vary per model)
