Manual hand riveter Junior Nietbox

for blind rivets

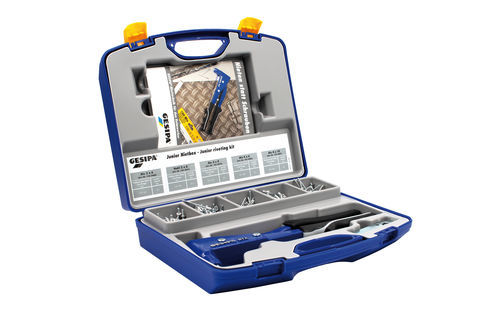

The NTX blind rivet pliers are easy to use thanks to their ergonomic and non-slip sleeve grips. The tool housing is made of high-quality die cast aluminum, and the tool shanks are forged from chrome-vanadium steel. The intermediate lever system reduces the amount of force required and dampens the tear-off effect. Thanks to the narrow tool head, the NTX hand riveting tool can also be used in hard-to-reach places. Maintenance of the hand tool is easy, and the jaws can be changed quickly and easily. The hand rivet tool is supplied in a practical junior riveting box with five standard blind rivet sizes and a maintenance wrench. The following blind rivet sizes are included in the box: Aluminum/steel 3.0 x 6.0 mm Aluminum/steel 3.0 x 8.0 mm Aluminum/steel 4.0 x 6.0 mm Aluminum/steel 4.0 x 10.0 mm Steel/steel 3.0 x 6.0 mm - Tool with opening spring: No - Max. working range in steel: 4.00 mm - Operating mode: Manual - Tool length: 260.00 mm - Tool stroke: 8 mm - Weight of carcass: 0.58 kg - Weight with packaging and accessories: 1.90 kg - Max. mandrel diameter: 3.00 mm Scope of delivery: NTX Blind rivets aluminum/steel 3.0 x 6.0 mm, 3.0 x 8.0 mm, 4.0 x 6.0 mm, and 4.0 x 10.0 mm Blind rivets steel/steel 3.0 x 6.0 mm 1 maintenance wrench Maintenance instructions + spare parts list Delivery in case Working range: Blind rivets up to 5 mm Ø in aluminum and 4 mm Ø in steel and stainless steel (max. mandrel Ø 3.0 mm)
