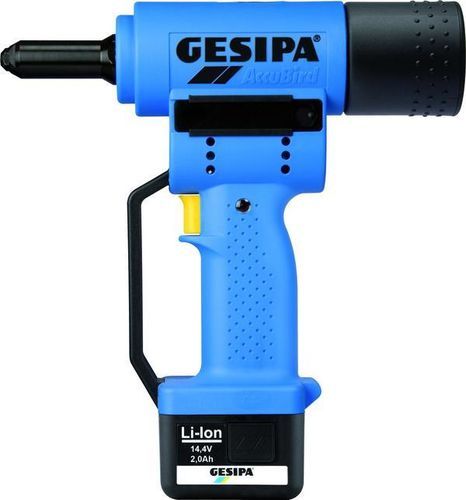

Battery-powered riveter AccuBird

cordlessfor blind rivets

Developed by the inventor of battery-powered riveting technology in Germany and produced there since 1992. The wireless tool for versatile application in assembly areas and industrial manufacturing. Immediately after mandrel break-off, the auto-reverse function stops the pulling process and moves the jaw assembly back into the initial position. This reduces wear, saves time and energy while making sure the tool is immediately ready for use. The AccuBird offers high operating speed because of the equal speed of the forward and reverse movements of the grip mechanism. The AccuBird features an electronic controller and an electronic temperature and overload protection function. The blind rivet setting tool also features high functional safety thanks to the low-loss transmission of force by means of the high-efficiency ball screw drive. The spring-loaded trigger system ensures that the parts to be riveted reliably make contact without any gaps before riveting. Furthermore, the operator will be certain that the blind rivet has reached its end position in the hole before setting and the setting head is in contact with the material. The pressing force can be varied with springs depending on the application. - Battery power: 2.00 Ah - Battery voltage: 14 V - Tool with return spring: False - Drive: DC motor - Number of included batteries: 1.00 piece - Working range in steel: 5.00 mm - Operating mode: Battery-powered - Weight with battery: 2.00 kg - Tool stroke: 20 mm - Weight carcass: 1.64 kg - Scope of delivery: AccuBird with spring-loaded trigger system, nosepieces: 17/24, 17/27, 17/29 and 17/32, 1 14.4V Li-Ion battery 2.0 Ah, 1 charger for 14.4V battery, operating manual with spare parts list, delivered in a plastic case - Setting force: 10,000 N - Max. mandrel diameter: 3.20 mm - Description of working range: Blind rivets from Ø 2.4 mm aluminium, up to Ø 5 mm all materials and blind rivets up to Ø 6 mm aluminium. (max. mandrel Ø 3.2 mm) - Weight with packaging and accessories: 4.71 kg
