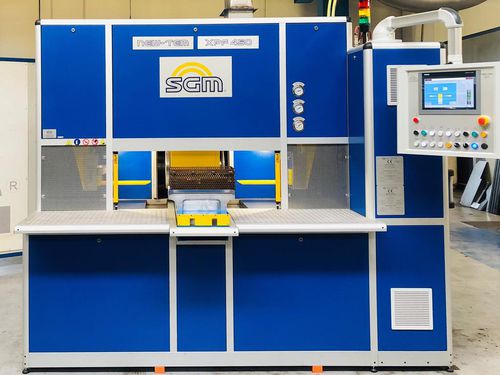

Brush roller deburring machine TEM XP F

aluminum partsfor steel partsrobotic

XP F (F = flexible) can deburr both components in cast iron, steel and ferrous alloys with a complete cycle (2 blows) and components in aluminum, copper, its alloys and zamak with a single cycle. The XP F is available both with a 260mm diameter chamber and variable length from 350mm to 500mm and operating pressure between 2 Bar and 20Bar, and with a 300mm diameter chamber and variable length from 420mm to 500mm and operating pressure between 2 Bar. and 15Bar; the size of the chamber is determined on the basis of the production needs of our customers. New-Tem deburring machines can be certified as conforming to INDUSTRY 4.0 measures. The machines can be served by robotic feeding systems or with automated or manual roller systems. TREATABLE MATERIALS STEEL CAST IRON ALUMINUM ZAMAK COPPER BRASS MACHINE DIMENSIONS Length [mm] 2.655 Width [mm] 2.085 Height [mm] (with predisposition for flue) 2.260 (2.660) Working shipment height [mm] 950 Weight [kg] 10.500 DEBURRING CHAMBER MEASUREMENTS Length [mm] from 350 to 500 Diameter [mm] from 260 to 300 BASKET SIZE Length [mm] from 330 to 480 Height [mm] from 155 to 180 Width [mm] from 190 to 240 OTHER SPECIFICATIONS Operating pressure [Bar] from 2 to 20 Installed power [kW] 20 Power supply voltage 380V 50Hz (3P+N+T) Auxiliary voltage 24 V DC Cycle time (sec) 50
