Air blower DSR350gasRoots rotary lobe3-lobe
Add to favorites
Compare this product
Characteristics
- Type
- air, gas
- Technology
- Roots rotary lobe, 3-lobe
- Number of stages
- single-stage
- Applications
- for vacuum, discharge, filter, for chemicals, for dairy products, for bulk materials
- Other characteristics
- oil-free, positive pressure, pneumatic
- Flow
Max.: 189 m³/min
(6,674.47 ft³/min)Min.: 106 m³/min
(3,743.35 ft³/min)- Operating pressure
Max.: 58,800 Pa
(8.528 psi)Min.: 9,800 Pa
(1.421 psi)- Nominal power
Max.: 250 kW
(339.905 hp)Min.: 37 kW
(50.306 hp)- Weight
2,817 kg
(6,210.42 lb)
Description

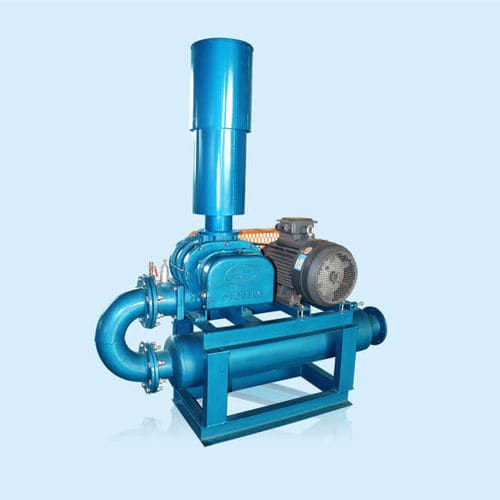

China DSR350 Roots Air Blower for air delivery adopt the advanced technology of Japan, its air capacity is 105.50m³/min-188.70m³/min, the pressure is from 9.8Kpa to 58.8Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.
Feature
1. Air capacity and pressure can be customized
2. Stable air capacity and less pressure variation
3. Clean air not with oil moist
4. Construction simple and easy maintenance
5. Bearing are all lubricated by oil moist
6. Long service life
Specification
Type of technology - Positive displacement blowers
Design - Positive pressure
Medium - Air, Neutral gases
Conveying - Oil-free
Discharge Diameter - 350mm(or customized)
Parts
Inlet filter silencer
Discharge silencer
Anchor bolts
Baseframe,
Safety valve,
Check valve,
Discharge pressure gauge,
Flexible connections
Lubricant.
Package
Fumigation free plywood case
Iron case
Catalogs
DSR-G Series
11 Pages
DSR Series
13 Pages
