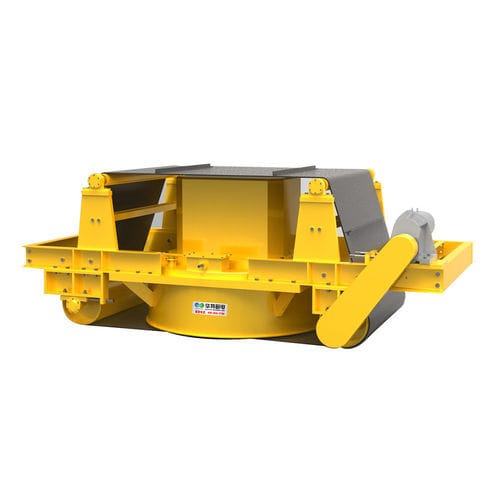

Coal separator RCDZ2

electromagneticself-cleaningautomatic

For large thermal power plants, coal transportation ports, coal mines, mines, building materials and other places that require high iron removal, and can work normally in harsh environments such as dust, humidity, and severe salt spray corrosion. Machine features Thoroughly solve the three major problems of heat dissipation, suction and environmental adaptation in general separator. Technology features ◆ The excitation coil adopts a layered winding structure, make the evaporative cooling medium fully contact with the coil, and improve the heat dissipation of the coil. ◆ The low rising working temperature, about 40C, slow down the aging speed of the coil and increases the service life of the separator. ◆ The high insulation and suitable boiling point cooling medium,improve the electrical insulation performance of the coil and ensures safe and reliable operation. ◆ Using the principle of thermodynamic phase change to cool the coil to ensure the low temperature and uniform temperature distribution of the electromagnetic separator. ◆ Evaporative cooling self-circulation system has small self-adaptation and self-regulation ability. The difference between suction in cold and hot is small, and the temperature does not change with the change of external environment. ◆Self-cleaning, easy maintenance, drum-shape structure, automatic belt-off-position correct,fully sealed bearing seat, and a labyrinth seal structure, used in large dust applications.
