Turntable stretch wrapping machine TP1650F-Dautomaticfor the food and beverage industryfor chemicals
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- automatic
- Product applications
- for building materials, for paper, for the food and beverage industry, for chemicals, for ceramics, bottle, for glass, for sheet metal, for electronics, for food
- Other characteristics
- stretch film
- Height
2,280 mm
(90 in)- Width
1,650 mm
(65 in)- Length
2,545 mm
(100 in)- Machine weight
700 kg
(1,543.24 lb)- Maximum wrapping height
Max.: 1,800 mm
(70.87 in)Min.: 800 mm
(31.5 in)- Maximum pallet weight
2,000 kg
(4,409.25 lb)- Table diameter
1,650 mm
(64.96 in)- Rotational speed
Max.: 12 rpm
(75 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Voltage
220 V
- Power
0.37 kW, 0.4 kW, 0.75 kW
(0.5 hp, 0.54 hp, 1.02 hp)- Capacity
Max.: 40 p/h
Min.: 20 p/h
Description

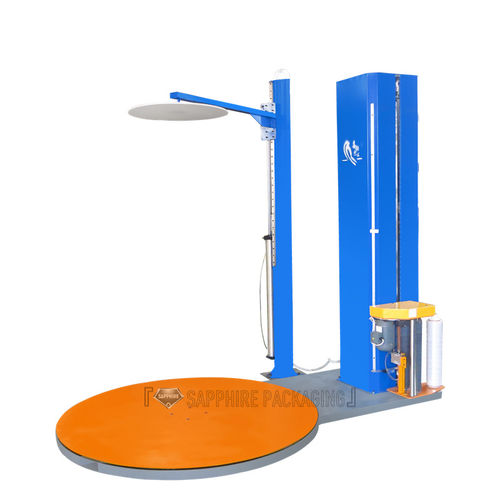

TP1650F-D automatic pre-stretch pallet wrapping machine equipped with the Pneumatic Top Platen unit. The top platen unit used a reliable separated lifting tower. The top platen wrapping machine are mainly used for light goods which are highly palletized on the pallet. It can help to prevent goods’ falling in the packing process. Especially applicable to canner and bottle industry.
The wrapping machine of TP series is suitable for lot cargo transportation in shipping container and bulk material pallet wrapping. The wrapping machine are widely used in industry of glass products, metal, electronics, paper making, ceramics, chemical, Food, drink, and building material etc. It can improve efficiency and reduce the wastage in transportation. The wrapping machine will provide advantages including dust proof, water proof and packing cost saving. It is the best choice to upgrade the product packing level.
Specifications
Main parts: 1 PLC programmable logic control, 3 inverters, 3 Speed reduction motors
