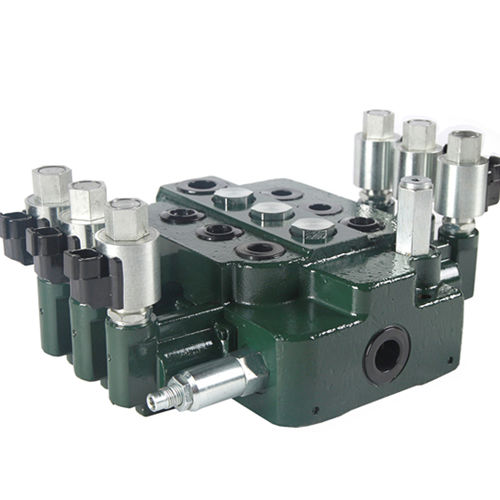

Spool hydraulic directional control valve GDV120
manualelectro-hydraulicmonobloc

spool hydraulic directional control valve
spool hydraulic directional control valve
spool hydraulic directional control valve
spool hydraulic directional control valve
spool hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
manual, electro-hydraulic
Other characteristics
monobloc, cast iron, aluminum
Flow rate

Max.: 130 l/min (34 us gal/min)

Min.: 0 l/min (0 us gal/min)

Operating pressure

Max.: 310 bar (4,496 psi)

Min.: 0 bar (0 psi)

Description

GDV120 Monoblock Directional Control Valves Features Valve body is made from integral grey cast iron. Spring cap, mechanical detent cap and electro-hydraulic driver module are made from die-cast aluminum. Optional power beyond. Optional mechanical positioning. Spool with various functions is available: for controlling dual-acting cylinder or single-acting cylinder, spool for hydraulic motor. Small operating force and excellent flow characteristics. Spool number: 1 - 4 can be assembled (now only1 spool is available). Specifications Rated Flow - 120L/min Max Flow - 130 L/min Max Pressure - 310 bar Internal leakage (70 bar): A/B to T - 30-35 CC/min Fluid Temperature Range - With NBR(BUNA-N) Seals - -20C° -80C° With FPM (VITON) Seal - -20C° - 100C° Spool Stroke (1/2position) - +7/-7mm With Floating Function (1/2 and F position) - +7/-7 -9mm Viscosity Range - 15-75mrrT2/s Ambient Temperature Range - -40C° -60C° Solenoid can be either 12VDC or 24VDC, corresponding current is 0-1.5 or 0-0.75 Amp.
