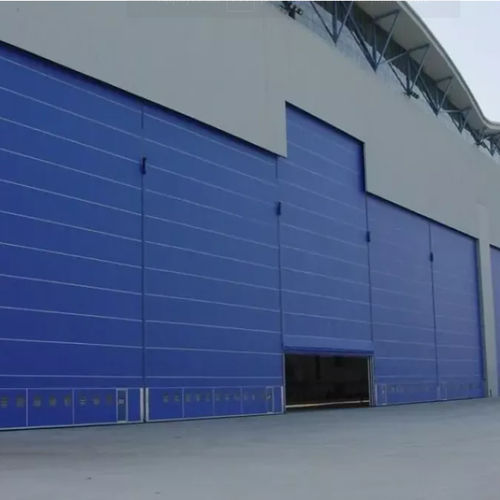

Flexible Fabric Lifting Mega Door
A fabric lifting doors with big sizes, fit for hangar, shipyard, mining, and big-machinery
Flexible material, high-wind resist, automatic running, ecomomy cost
Features:
1.Surface is PVC fabric, double layer and beautiful.
2.Main skeleton is formed with steel tubes. It is designed through precise structure calculation with universal steel structure software, meeting requirements of wind resistance.
3.Safety Drop-proof device, can stop falling of door body when the steel wire of motor breaks suddenly, protecting human life under the door.
4.Multi-limit design guarantees precise running.
5.Inching control design makes sure there will always be a human operating the door when it runs. This can avoid accidents caused by human-absence.
6.High safety class of motor and steel wire, guarantees reliable operation.
Optional Colors:
We offer several different colors for your choice. You can choose any one to fit for your building style.
1. Marine Blue; 2. Yellow; 3. Grey; 4. Orange; 5. White.
Technical Data:
Applicable location:Hangar, Shipyard, Mining workshop, Big machinery workshop
Max dimension: 50000mm wide*25000mm high
Wind resistance: Beaufort scale 12 (35m/s) or above for customized
Running speed: - 0.2m-0.6m/s
Design work life: 50 years
Power supply: 3-phase 380±10%V,50/60HZ
Protection level of electric: - IP55
Available colors of fabric:Yellow, Blue, Red, Grey, White
Fabric curtain:PVC(Polyvinyl chloride), 1.0mm thick
Frame material: Hot-dip galvanized steel, Q235 or Q345 grade
Wind bar:Aluminum alloy material, surface is powder coated
