Clean room door

swingmetalrubber

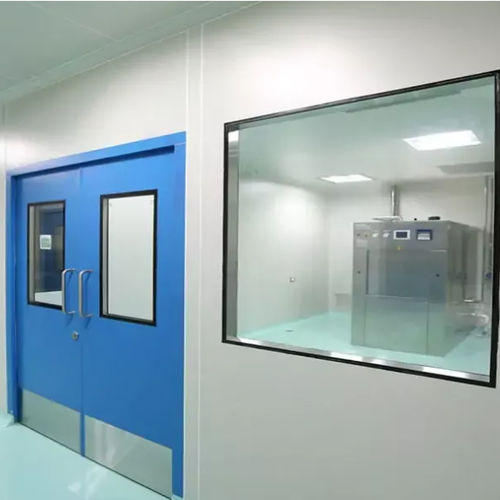

Clean Room Door & Window Complying with pharmaceutical GMP standards and Food-grade, high airtight, dust-proof, easy to clean, and rust-proof It is a metal swing door and windows installed in all kinds Clean Rooms. There are several unique features to meet special requirement of such buildings, listed as follows: 1.Rust-proof; 2.Free from dust retention; 3. Easy for cleaning; 4. Seamless and Pure plain; 5. Air tight. Thus, it is widely used in below listed buildings where there is extreme high demand for hygiene and cleanliness. It completely comply with Food-grade, pharmaceutical GMP standard and Electronic dust-free grade. • Food& drug factories • Laboratories • Hospitals • Electronics factories Door leaf：50mm thick. Surface is 0.8 or 1.0mm thick powder coated galvanized steel or 304 stainless steel. Inside is filled with high-density honeycomb paper or rock wool. Door frame: It is made from 1.2mm or 1.5mm thick painted galvanized steel or 304 stainless steel. Air-tight Seal structure: ① Between door leaf and door frame: There are EPDM weather seal rubber all around the frame and between two door leafs. The rubber touches the door leaf and completely close the gap. ② Between door leaf and floor. A special automatic drop seal rubber is installed at the bottom of the door leaf. It will automatically get down and close the gap with ground floor when door closed. Vision panel (optional): Special clean room glass. It is made from double layer tempered safety glass. It is also 50mm thick as door leaf, so its surface is on the same surface, to avoid dust retention and realize easy cleaning.
