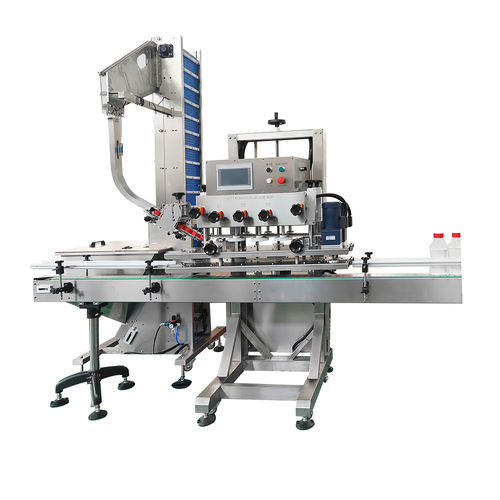

Linear capping machine NP-LCflexiblescrew-onscrew
Add to favorites
Compare this product
Characteristics
- Type
- linear, flexible, screw-on, screw, in-line, servo-driven
- Operating mode
- automatic, servo-driven, motor-driven
- Product applications
- for twist-off caps, for glass containers, for PET bottles, for oil, for bottles, for plastic bottles, for plastic screw caps, lid, cap, for cosmetic products, for caps, trigger, bottle, for screws, for pumps, wheel, spindle, for dispensers, flexible
- Application field
- for the food industry, for the chemical industry, for the beverage industry, for the pharmaceutical industry, for the packaging industry
- Other characteristics
- in-line, high-speed, single-line
- Throughput
Max.: 200 p/min
Min.: 0 p/min
Description
NP-LC automatic spindle screw capping machine is almost a universal capper
*Application: screw caps, flip flop caps, spray caps, drops caps, metal caps, twist off caps.
* Features:
1. "one motor controls one capping wheel" mode, which can ensure the machine to work stably and keep consistent torque under long term working condition.
2. Servo driven system is for option, to realize torque adjust function.
3. The clamping belts can be adjusted separately, which allow the machine to be suitable for capping bottles with various heights and shapes.
4. The convenient construction adjustment system is equipped with precise
ruler and counter.
5. The mainframe can be lifted and descended automatically by a motor.
6. Spindle Wheels Spindle Wheel adjustment knobs, with lock nut hand wheel, machine setting can be adjusted on HMI.
* Technical parameter:
1. Capacity: - 200 b/m（subject to bottles and cap size）
2. Bottle and Cap Diameter: - 20～120mm no need to change any molds for different caps
3. Bottle Height: - 40~460mm
4. Machine Dimension - L1060*W896*H1620mm
5. Voltage: - AC 220V 50Hz
6. Power: - 1500W
7. Weight: - 500kg
8. Dimension: - 800×600×1700mm
