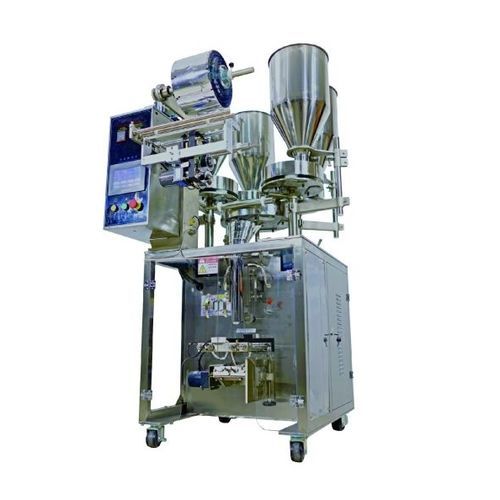

PLC-controlled packing machine PB-V-65M

verticalbagfor powders

Multi-material packing machine Categories : Customised Automation Equipment, Packing Machine The machine is suitable for food products of particles, powder, liquid, paste and others measurement packing. All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions. Features: 1. It is touch screen operation, PLC control 2. Drive stepper motor to control the bag length 3. Stable performance, easy to adjust and accurate detection. 4.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 ℃. 5.Packing material: BOPP/Polyethylene, Aluminium/Polyethylene,Paper/Polyethylene, Polester/Plated alumnium/Polyethylene,Nylon/CPP and so on. Main Technical Parameters Measuring Scope: 1-20g(3-100ml) Bag Size:(L) : 30 – 140 mm (W) : 30 – 170 mm Dimension (L* W * H): 1450 * 1050 * 1900 mm Weight: 400 kg Total Power: 220V / 50Hz / 1.5kw Optional Equipments Coding Machine bag linking device lower cutter
