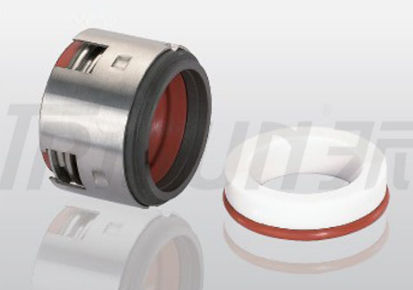

Spring mechanical seal TS 502

for pumpsNBRcarbon

TS 502 Machined Mechanical Seal (Replace AESSEAL B07S , CRANE 502 B0 SEAT,BP SEAT) Our mechanical seal model 502 can replace AESSEAL B07S and CRANE 502 ,which is widely used for industrial pumps. BO seat and BP seat are usually used for 502 type. The normal material combination incl... Features Our mechanical seal model 502 can replace AESSEAL B07S and CRANE 502 ,which is widely used for industrial pumps. BO seat and BP seat are usually used for 502 type. The normal material combination include resin carbon/ceramic/nbr/ss304,resin carbon/tc/nbr/ss304,sic/sic/nbr/ss304 ,tc/tc/nbr/ss304 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs. TS 502 Operating Limits: Pressure: ≤4MPa Speed: ≤13m/s Temperature: -30℃~+200℃ Rotary Ring (Carbon/SiC/TC) Stationary Ring (99%Ceramic/SiC/TC) Secondary SeaI (VITON/NBR/EPDM) Spring & Other Parts (SUS304/SUS316) The standard seat for the TS 502 seal is the BO seat (DIN24960). Alternative seats can also be used, such as the BP and BC seats.
