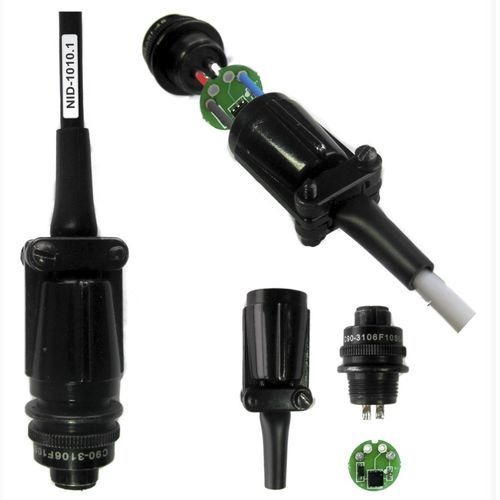

Interface adapter NID-1010.1

NID-1010.1 Integrated TEDS* Adapter (with MIL connector) is an electronic device that enables conversion from non-TEDS IEPE (ICP®) sensors into TEDS IEPE (ICP®) sensors according to ISO/IEC/IEEE 21451-4:2010 standard. This device allows the user to read/write such data as identification data about manufacturer, identification data concerning the sensor, sensor’s technical characteristics, details regarding calibration etc. This device is made for connection to IEPE piezoelectric accelerometers and IEPE piezoelectric velocity sensors, which have two pin connector compatible with the MSL-DTL-5015 (formerly MIL-C-5015). With this unit, we offer two types of low noise cables suitable for IEPE (ICP®) sensors: cables with armor and without it. Type and length of low noise cable is user definable during the ordering process. Standard cable lengths are: 3ft, 6ft and 10ft. There is a possibility of ordering any length of cable as long as it has no interference with IEPE (ICP®) signal. Reading and writing data are possible with any reader/writer that is fully compatible with ISO/IEC/IEEE 21451-4:2010 standard. Optionally, we offer the NID-1001 TEDS Interface Kit with related software for writing and reading of TEDS data. Application note It is possible to install and implement the unit both in a new, as well as in the existing Condition Monitoring Systems (CMS) and Machinery Monitoring System (MMS), that are independent and/or SCADA/DCS supported.
