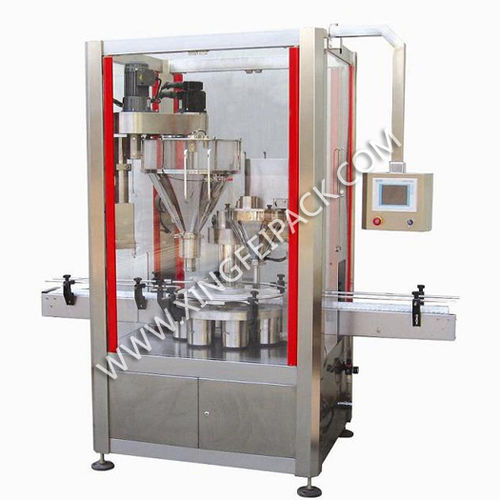

Twin-auger filling machine XFF-GII
automaticcanfor powders

twin-auger filling machine
twin-auger filling machine
twin-auger filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Container type
can
Product applications
for powders, food
Domain
for the food industry
Type
twin-auger
Other characteristics
high-speed
Throughput

Min.: 25 p/min

Max.: 55 p/min

Volume

50 l (13.2 gal)

Capacity

Min.: 1 g (0 oz)

Max.: 6,000 g (212 oz)

Machine length

2,930 mm (115 in)

Machine width

1,200 mm (47 in)

Machine height

3,330 mm (131 in)

Machine weight

700 kg (1,543 lb)

Description

This machine is equipped with two sets of dosing unit for different size: pre-dosing and complement dosing. Three sets of servo driver and touch screen ensure the entirely improvement in precision and speed. Be applicable for packing powdery, super fine powdery products. Main features: 1.The whole machine is made of stainless steel material except of motor, in particular the application of GMP, food sanitation certification, and suitable for the amyctic materials.   2.Touch-screen man-machine interface: work stability, anti-interference, high-precision weighing, easy and intuitive to operate. Stepless adjust the packaging weight. Change the working parameter at any time, easy to control.  3.Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance.  4.Stirrer’s driven by the Taiwanese motor reducer: low noise, long life, maintenance-free life.  5.Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material  6.Side-open of the hopper is made of  stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the  leak, and the discharge material mouth with the dust collector to protect the workshop dnvironment .  7.Replacing the auger parts, it is suitable for material from super thin powder to granule. Specification: Metering Mode: Dual auger filling & weighing  Size of the container: Cylindrical containerφ50—180MM  High 50-350MM  Packing weight: 10— 5000G (The screw attachment is to be changed)  Weighing range: 1—6000G (Resolution is 01g)
