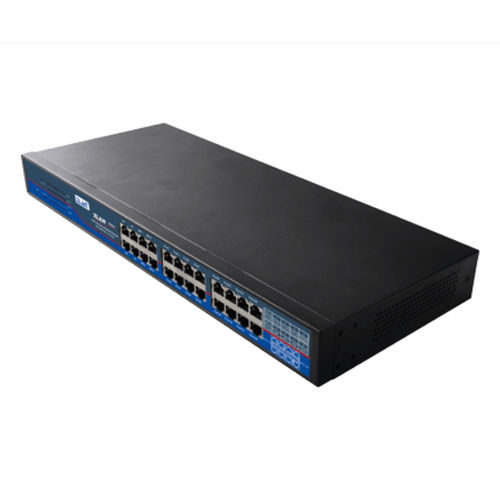

Serial device server ZLAN5G00A

EthernetRJ45DB9

ZLAN5G00A Serial Device Server is a rack-mounted 16-port protocol converter between RS232/4485/422 and TCP/IP developed by Shanghai ZLAN. ZLAN5G00A support 16 channels RS232 serial port, 16 channels RS485 serial port, 16 channels RS422 serial port, and RS232 support flow control. The 16 channels can achieve to full-duplex work at the same time after connecting to ZLAN5G00A via a network cable, and the function of each serial port is same as single serial port server ZLAN2100/3100. Each channel serial port can be TCP client, UDP client, UDP-UDP multicast. ZLAN5G00A is the ideal choice for multi-serial port connecting to internet. ZLAN can provide shells in both white and black colors. 特点 1) All 16 channels support the three kind serial port RS232, RS485, RS422 (needs jumper setting), the serial port is in type of RJ45. RS232 support hardware flow control. When using RS232, can provide patch cord accessories for RJ45 to DB9 (male). 2) All 16 channels can full-duplex work independently and no-interference each other. Can be configured different baud rate. 3) Support network switch function of 4 Ethernet port, and can be used as switch meanwhile. 4) Abundant signal light, each serial port has independent indicator light for TCP connection and data activity. 5) Support power supply through cable----POE power supply (customization)
