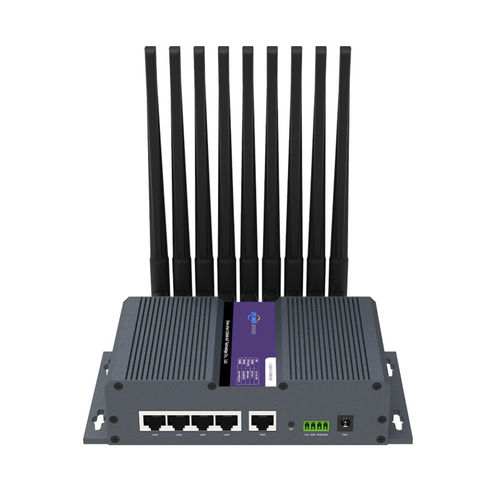

Cellular communication router ZR9000 series

WANEthernet2.4/5 GHz

ZR9000 series from Chilink brings next-generation cellular connectivity at a highly competitive price. Offering global 3G, 4G/LTE & 5G band coverage in a compact industrial form factor, the ZR9000 series enables rapid deployment of high-speed IoT applications in verticals as diverse as Transportation, Enterprise Connectivity and Digital Signage. 1.Industrial Grade Design – Rugged metal casing, handles extreme heat and cold well. – Wide working voltage DC 7.5V to 32V. ESD and lightning protection. – Both hardware and software watchdog, multi-layer link detection mechanisms 2.Convenient and Efficient Access to the Network Anytime, Anywhere – 5G NR-SA/NR-NSA, TDD-LTE/FDD-LTE(Cat 20), WCDMA – Wired/ADSL access – Dual Frequency WiFi wireless access 3.Security Data – VPN client mode PPTP, L2TP, OpenVPN, IPsec, N2N GRE, EOIP, effectively ensuring the security and integrity of data transmission – Qos, DMZ, Firewall (Domain Filter, Keyword Filter, Blacklist, Whitelist, virtual IP mapping, MAC-IP address binding) 4.Serial DTU – TCP Client/server, UDP Client/server, MQTT, Modbus RTU, Modbus TCP, Transmit transparently(pass-through) 5.Powerful Functions for Professional Application – Port Forwards, Static NAT, DDNS, SNMP(optional) – Load Balancing, enables network failover between Wired/Wi-Fi and Cellular. – Timing/Auto reboot function. – Built-in network traffic monitoring and diagnostic tool for easy troubleshooting – Support SMS functions
