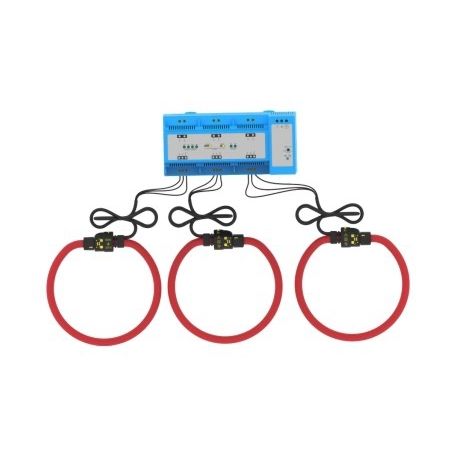

Rogowski coil current sensor CY-RCT02A1(5)

flexible

"CY-RCT02A1 (5)" Type 1 (5)A Rogowski coil split current transformer provides easy-to-install plug-and-play solution that can be connected to a power meter or a 1(5)A current transformer Equipment used in conjunction. The Rogowski coil split current transformer Kit has a three-channel 1(5)A integrator output that can be used for most power meters and devices with 1 (5) A input. The kit offers four selectable measurement ranges including: 500A, 1kA, 2.5kA and 5kA, the detection range of 0.5% to 120% of the rated current input .Applied to 50 / 60Hz system, the rated frequency range of 45Hz to 65Hz. The mounting bracket is DIN rail or surface mount, with 24Vdc power supply. Application ：Uses: power instrumentation, electronic multi-function energy meter and field calibrator, instrumentation measurement and protection. Features： No need to disconnect the bus line power outage, easy installation. Simple and quick installation in a small space; Fine design, coil size can be customized Excellent linearity； Dimension and wire schematic
