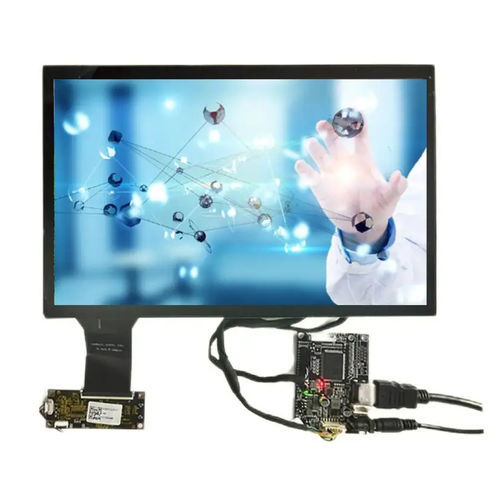

TFT LCD display module HG121WX001T01IPS1280 x 80012.1"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Format
- 1280 x 800
- Screen size
- 12.1"
- Applications
- industrial, medical
- Interface
- LVDS, HDMI
- Structure
- compact
- Width
278 mm
(10.9449 in)- Height
184 mm
(7.2441 in)- Depth
11.7 mm
(0.46 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
This 12.1-inch HDMI display can be used in medical EMI and EMC-related test standards to clearly and accurately represent test results.
In addition, the HDMI connectivity of the display screen allows for easy integration with other testing equipment and software, providing a streamlined testing process.
The compact size of the 10.1-inch display screen makes it convenient for use in various testing environments and can be easily mounted or attached to testing equipment.
Display Mode
-
Transmissive
Optimal View
ALL
Active Area
261.12 x 163.20 (mm) (W x H)
Luminance
-
280 (cd/m2) (customizable）
Storage Temperature
-
-30~+80 (°C)
Catalogs
HG121WX001T01
22 Pages
