Product Overview

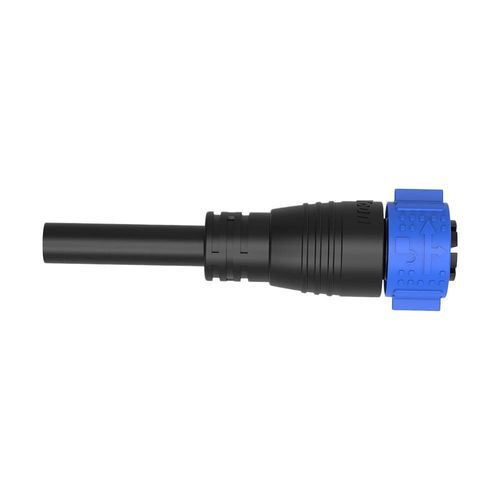

Pre-molded M25 2-pin waterproof push-lock connector supplied with cable, designed for reliable outdoor power connections in solar PV, energy storage and industrial installations. IP67 protection and robust sealing make it suitable for harsh environments.

Key Features

• 50A high-current capacity – Φ3.5mm copper-alloy contacts support rated currents up to 50A (varies by pin count) and voltage rating up to 500V for 2/3/4‑pin variants.
• Push-lock mechanism – Tool-free quick connect/disconnect with self-locking design for secure mating in high-vibration applications.
• IP67 waterproof & dustproof – Fully sealed housing resists water, dust and oil, suitable for outdoor and factory-floor use.
• Wide cable compatibility – Accepts 1.0mm²–6mm² (18–9 AWG) conductors with maximum outer diameter MAX Φ16mm.
• Flame-retardant housing & wide temperature range – UL94 V-0 rated housing and operating range from -40°C to 105°C for long-term reliability.
• Global certifications – ISO9001, CE, UL, RoHS and TUV (model-dependent) for international installations.

Product Specifications

• Available pin configurations and ratings:
• 2‑Pin — Contact Ø: Φ3.5mm; Current: 50A; Voltage: 500V; Withstanding voltage: 2500V
• 3‑Pin — Contact Ø: Φ3.5mm; Current: 50A; Voltage: 500V; Withstanding voltage: 2500V
• 4‑Pin — Contact Ø: Φ3.5mm; Current: 50A; Voltage: 500V; Withstanding voltage: 2500V
• 5‑Pin — Contact Ø: 2.7mm; Current: 30A; Voltage: 300V; Withstanding voltage: 1500V

Applications & Advantages
Pre-molded cable assemblies for solar PV arrays, energy storage systems, industrial automation and outdoor LED lighting where IP67 protection, secure push‑locking connection and high-current capability are required. Series options include IP67/IP68 with IP69K available as a custom option. High mating-cycle durability (500+ cycles typical) and compatibility with standard cable gauges simplify installation and maintenance.

Technical specifications

• Series: M25 series
• Pin count (this product): 2 Pin
• Contact diameter: Φ3.5mm
• Rated current (2-pin): 50A
• Rated voltage: 500V
• Withstanding voltage: 2500V
• Cable gauge supported: 1.0mm² ~ 6mm² (18 ~ 9 AWG)
• Maximum cable outer diameter: MAX Φ16mm
• Ingress protection: IP67 (series variants IP68 / optional IP69K)
• Connecting mode: Push Locking (self-locking)
• Housing flame resistance: UL94 V-0
• Operating temperature range: -40°C to 105°C
• Durability: 500+ mating cycles (typical series rating)
• Certifications: ISO9001, CE, UL, RoHS, TUV (as applicable per model)
