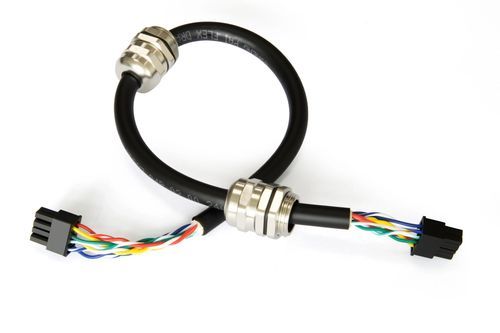

Signal cable harness

power distributionUSBmulti-conductor

Overview
Fully customized wiring harness and cable assembly services for medical and industrial equipment, including twisted-pair, flat ribbon, double-ended terminal cables, multi-core sheathed cables, USB conversion harnesses, multi-branch loom wiring and O-type ground lug cables. Suitable for medical instruments, automation systems, intelligent devices, printers, motor drives and electronic control modules. OEM/ODM production supported from drawings and samples.

1. Comprehensive Customization Support
Customize conductor gauge, overall length, pin assignments, color coding, outer jacket material (PVC/TPU/shielded), printed wire markings and terminal types according to drawings, samples or technical specifications. Flexible for both small-batch prototypes and mass production.

2. Diverse Cable Structures & Connector Options
Available connector and termination options include PH/XH/JST series, USB‑A, multi-pin locking connectors and O-type ground lugs. Cable structures available: twisted pair, flat ribbon, multi-core sheathed, multi-branch loom and double-ended terminal configurations to meet internal wiring layouts of equipment.

3. Stable Crimping & Long Service Life
Precision automatic crimping ensures reliable electrical and mechanical contact. Assemblies incorporate heat-shrink tubing, strain reliefs and cable tie reinforcement to resist bending, pulling and abrasion and to minimize wire breakage and intermittent faults.

4. Superior Environmental Adaptability
Standard cables rated to 300V working voltage with an operating temperature range of -40℃ to 105℃. Materials selected for oil resistance, wear resistance, low-temperature performance and aging resistance. Shielded constructions available for high EMI industrial environments.

5. Extensive Industry Application Scenarios
Commonly used in medical devices, industrial automation, intelligent equipment, printers, motor and drive systems, smart home electronics, monitoring systems and new energy applications where reliable internal connections are required.

Product specifications

• Customization: conductor gauge, total length, color coding, pin assignment and printed markings per drawing or sample
• Outer jacket materials: PVC, TPU, shielded options
• Connector types: PH/XH/JST series, USB-A, multi-pin locking connectors, O-type ground lugs
• Cable structures: twisted pair, flat ribbon, multi-core sheathed, multi-branch loom, double-ended terminal cables
• Termination & assembly: precision automatic crimping, heat-shrink tubing, strain reliefs, cable ties
• Electrical rating: standard cables rated to 300V working voltage
• Temperature range: -40℃ to 105℃ operational
• Durability: oil-resistant, wear-resistant, low-temperature resistant, anti-aging; shielded options for EMI environments
• Production support: small-batch and mass production, OEM/ODM, drawing and sample based fabrication
• Typical applications: medical instruments, industrial automation, intelligent equipment, printers, motor drive systems, electronic control modules, smart home, monitoring systems, new energy equipment
