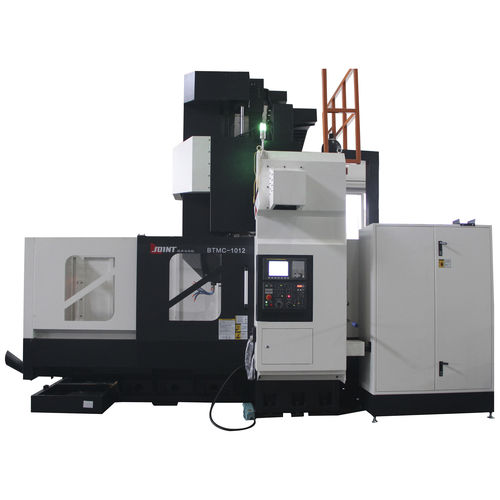

3-axis CNC machining center BTMC1215
verticaldouble-columncutting

3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
double-column
Applications
cutting
Other characteristics
precision
X travel

1,500 mm
(59 in)

Y travel

1,200 mm
(47 in)

Z travel

800 mm
(31 in)

Rotational speed

8,000 rpm
(50,265 rad.min-1)

Power

15 kW
(20.39 hp)

Description

Small Size CNC Double Column Machine Center BTMC1215 Trave; 1500*1200*800mm Request a quote Small Size CNC Double Column Machine Center Table size :900*1500mm Travel :1500*1200*800mm BT50/8000Rpm/15kw Spindle Cutting feed speed range:18/18/18m/min Position Accuracy X/Y/Z axis:0.012/0.01/0.01mm 1.These small double column machine center can be instead of big size VMC machine center 2.Table load weight increase 50% than big VMC machine ‘s ; 3.Machine ‘s durability and precision retaining ability enhance than big type VMC machine . 4.X/Y axis is roller linear way , Z axis is box way . 5.BT40/10000Rpm/12000Rpm/15000Rpm Spindle is optional .
