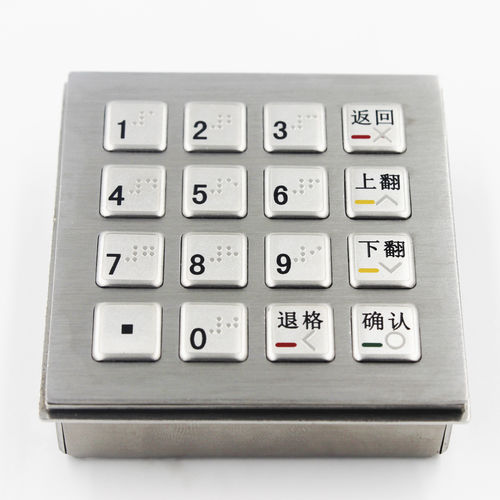

16-key keypad KY3060

panel-mountUSB

The number of keys: 16 keys Key dimensions: the number keys 10.0mm x 10.0mm; 10.0mm x 10.0mm function key Buttons life: 2000000 times per key The key pressure: 3 ~ 5 N (Newton) Key stroke is: 0.5mm Working voltage: 5V DC Interface: RS232 or USB (RS232 simulation) Data: not less than 1.5 metres in length The working power consumption: working condition, the maximum current is less than 200mA, the actual power consumption is less than 1 W Service life: the operation life of >10 years The panel size: 60.0mmx60.0mm Overall size:62.0mmx62.0mmx21.0mm Net weight: 0.15 kg (without side key function. The single side key features: net weight 0.07-0.12 kg / a) Gross weight: 0.25 kg (without side key function. The single side key features: net weight 0.07-0.12 kg / a)
