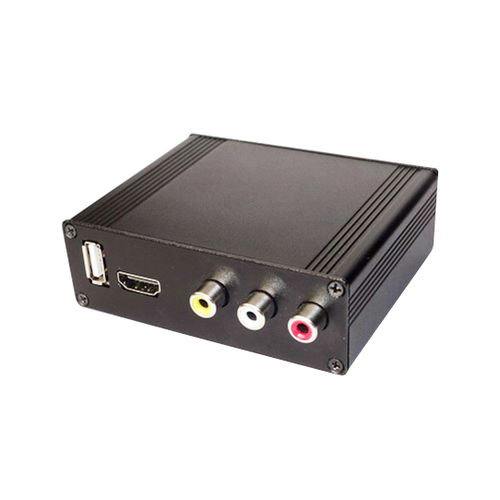

Video transmission receiver
infraredwirelessUSB

video transmission receiver
video transmission receiver
Add to favorites
Compare this product


Characteristics

Type
wireless, infrared
Applications
video transmission
Interface type
USB

Description

Qingzhun technology full HD video wireless real-time transmission receiver is our latest broadcast-level high-definition image real-time transmission system. Ultra-small (92mmx75mmx30mm), ultra-light (150g), ultra-low power consumption (about 4W) ultra-high receiving sensitivity (-100dBm), HDMI and AV dual video sync output, with local storage, can be inserted into the U disk to record full HD video. 二、Image transmission receiver parameters Operating frequency range - 300 MHz ~862MHz (Automatically searchable or manually set) Modulation - COFDM 2K Mode Support mobile speed - 230Km/h Working bandwidth - 8MHz RF interface - Dual SMA type 50 ohm antenna interface Receiving sensitivity - -100dBm Output Interface - HDMI + AV + USB(Support 1080P video recording and playback) Parameter setting method - Infrared controller or custom button Video resolution - 1920X1080P@60Hz / 1280X720P screen ratio - 16:9 Working current - 350mA@12V External power supply - DC 12V Dimensions - 92 mm×75 mm×30 mm (L×W×H) weight - 150g
