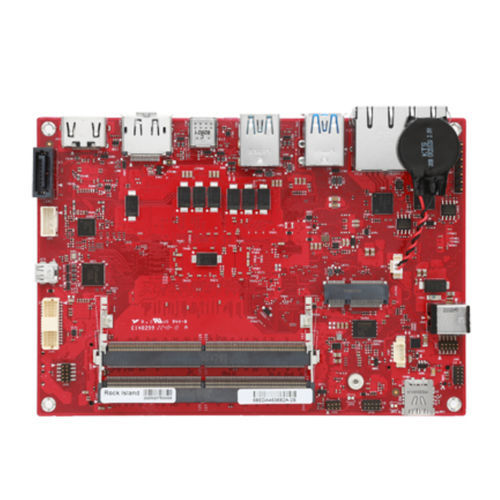

3.5" motherboard SV3b-RKI Intel® Core i3Intel® Core i5Intel® Core i7
Add to favorites
Compare this product
Characteristics
- Format
- 3.5"
- Processor
- Intel® Core i3, Intel® Core i5, Intel® Core i7, 13th Generation Intel® Core™
- Chipset
- Intel®
- Memory
- DDR5 SO-DIMM
- Extension slot
- SATA3, M.2
- Applications
- industrial
- Operating system
- Linux, Windows 10, Windows 11
- Memory frequency
- DDR5 4800 MHz
- Connectivity
- gigabit Ethernet, 2.5 GbE, LVDS, WiFi, Bluetooth, HDMI, USB 3.2, RS-232, RS-485, DisplayPort
Description
Storage
1 * SATA 3.0
1 * M.2 (Key-M, 2280, PCIe x4 NVMe)
Expansion Interface
1 * M.2 (Key-E, 2230, support Wi-Fi+BT)
1 * M.2 (Key-B, 2280, support 4G/5G)
BIOS
- AMI UEFI BIOS
System
- Windows 10/11 64-bit, Linux
I/O Interface
Ethernet
- 2 * Intel® Gigabit Ethernet Controller (up to 2.5 GbE), RJ45
Serial
- 1 * RS232, 1 * RS485
USB
3 * Type-A, USB 3.2
2 * Type-C, USB 3.2 + DP 1.4a
Others
- 1 * eSPI, 1 * SPI, TPM 2.0, WDT
Display
Display Interface
1 * DP 1.4a++, max resolution up to 7680*4320@30Hz
2 * DP 1.4a, Type-C, max resolution up to 7680*4320@30Hz
1 * HDMI, Type-A, max resolution up to 7680*4320@30Hz
1 * LVDS, max resolution up to 1920*1200@60Hz
1 * Micro HDMI IN, HDMI to MIPI CSI
Multiple Display
- Quad
Mechanical & Environment
Dimension
- 146 * 102mm
Power Input
- DC 12V
Temperature - Operation: 0℃~45℃, Storage: -20℃~75℃
Relative Humidity
- 5%~95% RH (non-condensing)
