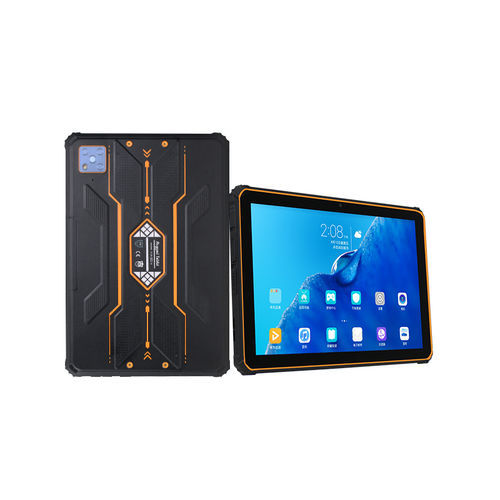

Android 14 tablet ST10-A2

10.1"8 GBIP68

Product Overview
The ST10-A2 is a 10.1-inch rugged Android tablet powered by the MTK MT6877 octa-core processor and running Android 14. It offers 8GB RAM and 256GB internal storage, a 1200×1920 TFT display with 10-point touch and stylus support, front and rear cameras, a 10000mAh battery and multi-band 5G connectivity. Built to IP68 and 1.2m drop resistance, the device is designed for large-screen industrial and outdoor 5G applications with extended temperature range and optional expansion modules.

Key Features

• Android 14 on MTK MT6877 octa-core CPU (2×Cortex-A78 @2.4GHz + 6×Cortex-A55 @2.0GHz)
• Arm Mali-G68 GPU; 10.1" TFT 1200×1920, 350 nits (TYP) / 400 nits (MAX)
• 8GB RAM / 256GB fixed storage
• 10000mAh (38.0Wh) battery for extended runtime
• 5MP front and 13MP rear cameras; 10-point touch with stylus support
• 5G multi-band and full 4G LTE support; WiFi 6 (802.11ax) and Bluetooth 5.2
• IP68 dust/waterproof rating and 1.2 m drop resistance
• Dual SIM (or SIM + TF) slots, Type-C port, SOS/scan function button

Technical Specifications (ST10-A2)
OS: Android 14
CPU: MTK MT6877 Octa Core (2×Cortex-A78 @2.4GHz, 6×Cortex-A55 @2.0GHz)
GPU: Arm Mali-G68
RAM/ROM: 8GB / 256GB (fixed)
Display: 10.1 inch TFT, 1200×1920; 350 nits (TYP), 400 nits (MAX)
Touch: 10-point touch, stylus support
Camera: Front 5MP; Rear 13MP
Battery: 10000mAh / 3.8Vdc (38.0Wh)
WWAN: GSM/WCDMA/CDMA; TDD-LTE / FDD-LTE full-band; 5G bands including N1/N2/N3/N5/N7/N8/N20/N25/N28/N38/N40/N41/N66/N71/N77/N78
GPS: BDS, GPS, GLONASS, Galileo
WiFi: 802.11a/b/g/n/ac/ax (2.4G/5G), supports WiFi 6
Bluetooth: v5.2
NFC: 13.56 MHz, 1–3 cm; ISO/IEC 14443 A/B, ISO/IEC 15693
MIC: -42 dB, 2.2 kΩ
Speaker: 40×22.59×3.1 mm, 8Ω 1W
Sensors: G-sensor, magnetic sensor, O-sensor, acceleration sensor, motor
Dimensions: 250 × 166 × 14.2 mm
Weight: 800 ± 50 g
Interfaces: Type-C ×1; SIM slot ×2 or SIM + TF
Buttons: Power, Volume +/-, SOS (or Scan on scanner version)
Barcode: Optional 1D/2D (NLS-N1)
Ingress Protection: IP68; 1.2 m drop resistance
Temperature: Storage -40°C to 60°C; Operation -20°C to 55°C

Optional Modules & Accessories

• 1D/2D barcode scanner (NLS-N1)
• Multi-system GPS (BDS/GPS/GLONASS/Galileo)
• Replacement batteries, protective housings, stylus and vehicle mounts
