Windows 10 IoT Enterprise handheld computer SH5-W

Windows 10 ProIntel Atom® x5-Z8350GPS

Product Overview

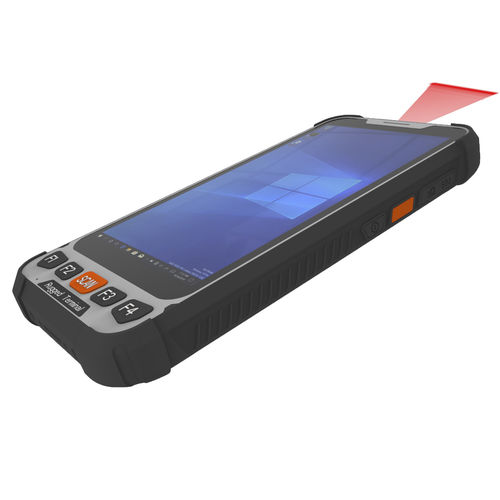

The SH5-W is a 5.5-inch rugged Windows handheld terminal powered by an Intel Cherry Trail Z8350 quad-core CPU (1.44GHz, turbo up to 1.92GHz). It ships with Windows 10 Pro (Windows 10 Home / IoT optional) and integrates 4GB RAM and 64GB storage, a 1080×1920 IPS display (400 nits), 2MP front and 5MP rear cameras, and a 5000mAh battery. Designed for portable industrial data collection and mobile workflows, the device supports full-network connectivity and optional data-capture modules.

Key Features

• OS: Windows 10 Pro (Windows 10 Home / IoT optional)
• CPU: Intel Cherry Trail Z8350 (Quad Core, 1.44GHz; turbo up to 1.92GHz)
• Memory/Storage: 4GB RAM / 64GB ROM
• Display: 5.5-inch IPS 1080×1920, 400 nits, 5-point touch
• Cameras: Front 2MP / Rear 5MP
• Battery: 5000mAh (3.8V, 19.0Wh); typical usage ~5.5 hours; charging ~4 hours
• Connectivity: 4G LTE (module options), Intel 3165 WiFi (2.4/5 GHz), Bluetooth 4.2, GPS (BDS/GPS/GLONASS)
• Optional modules: UHF RFID, fingerprint sensor, 1D/2D barcode scanner
• Ruggedness: IP65 dust/water protection; 1.2 m drop resistance
• Ports & expansion: USB 3.0, Micro USB (OTG), SIM slot, TF card, DC jack, bottom/back pogo pins (USB/POE/RS232/charging)

Application Scenarios

• Logistics and warehouse management
• Industrial data collection and field inspection
• Retail inventory and point-of-service operations
• RFID asset tracking and mobile workforce

Technical Specifications

• CPU: Intel Cherry Trail Z8350 (Quad Core, 1.44GHz; turbo up to 1.92GHz)
• GPU: Intel HD Graphics 400
• RAM/ROM: 4GB / 64GB
• Display: 5.5" IPS, 1080×1920, 400 nits, 5-point capacitive touch
• Cameras: Front 2MP (GC2355); Rear 5MP (OV5648)
• Battery: 5000mAh (3.8V, 19.0Wh); charging ~4h; playback ~5.5h (conditions apply)
• WWAN: 4G LTE / 3G / GSM (module-dependent bands EG91-EX / EG91-NAX)
• WiFi/Bluetooth: Intel 3165 (802.11 a/b/g/n/ac), Bluetooth 4.2
• NFC: 13.56 MHz, ISO14443, MIFARE
• Dimensions / Weight: ~180 × 87 × 20 mm; ~350 g
• Operating Temp: -20°C to 55°C; Storage: -40°C to 60°C
• Interfaces: Micro USB (OTG), USB 3.0, SIM, TF, DC jack; pogo pins for docking/POE/RS232
• Accessories: standard charger, hand strap; optional docking station and vehicle mounts
