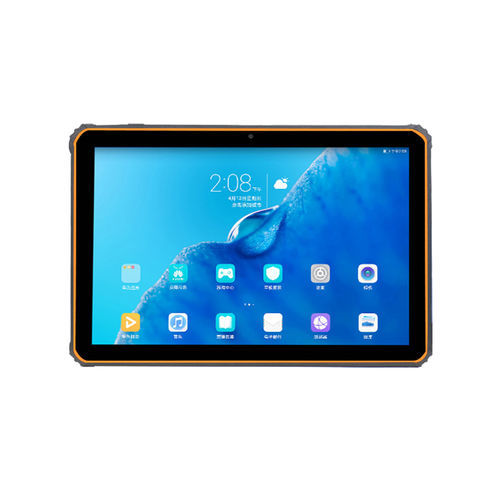

Android 13 tablet ST10-T

10.1"8 GB4 GB

Product Overview
The ST10-T is a 10.1-inch rugged Android tablet powered by Unisoc T616 (Unisoc T606 optional) and running Android 13.0. Designed for industrial and outdoor use, it offers flexible memory configurations, a daylight-readable 1200×1920 TFT display, long-life 10000mAh battery and industrial-grade protection including IP68 and 1.2 m drop resistance.

Key Features

• Android 13.0 with Unisoc T616 (Octa-core, 2.0 GHz); Unisoc T606 optional
• 10.1" TFT 1200×1920 display (350 nits TYP / 400 nits MAX) with Mali-G57 MP1 GPU
• Memory options: 4GB/64GB or 8GB/128GB; expandable storage via TF (depending on slot configuration)
• 10000mAh (3.8V / 38.0Wh) battery for extended field operation
• 5MP front camera and 13MP rear camera; 10-point capacitive touch with stylus support
• Cellular connectivity: 4G LTE multi-band (FDD/TDD), WiFi 5 (802.11 a/b/g/n/ac) and Bluetooth 5.0
• IP68 dust/waterproof rating and 1.2 m drop resistance for harsh environments
• Dual SIM slots (or SIM + TF), Type-C port, SOS/scan function button; optional 1D/2D barcode scanner (NLS-N1)
• Optional multi-system GNSS: BDS / GPS / GLONASS

Technical Specifications (ST10-T)
OS: Android 13.0
CPU: Unisoc T616 (Octa Core; 2.0 GHz) - Unisoc T606 optional
GPU: Mali-G57 MP1 @ 850 MHz
RAM/ROM: 4GB/64GB or 8GB/128GB
Display: 10.1 inch TFT, 1200×1920; 350 nits (TYP), 400 nits (MAX)
Touch: 10-point capacitive, stylus support
Cameras: Front 5MP; Rear 13MP
Battery: 10000mAh / 3.8V (38.0Wh)
WWAN: FDD_LTE: B1/B2/B3/B5/B7/B8/B20; TDD_LTE: B38/B39/B40/B41; WCDMA: B1/B2/B5/B8; GSM: B2/B3/B5/B8
GNSS: BDS, GPS, GLONASS
WiFi: 802.11 a/b/g/n/ac (2.4G/5G), Mobile AP
Bluetooth: 5.0
NFC: 13.56 MHz, 1–3 cm; ISO/IEC 14443 A/B, ISO/IEC 15693
Audio: MIC -42 dB, 2.2 kΩ; Speaker 8Ω 1W
Sensors: Magnetic sensor, G-sensor, Orientation sensor, Accelerometer, Gyroscope, Vibration motor
Dimensions: 250 × 166 × 14.2 mm
Weight: 800 ± 50 g
I/O: Type-C ×1; SIM slots ×2 or SIM + TF
Buttons: V+ / V-, Power, SOS (scanner version: SOS replaced by Scan)
Barcode: Optional 1D/2D NLS-N1
Protection: IP68, 1.2 m drop resistance
Temperature: Storage -40°C to 60°C; Operation -20°C to 55°C

Application Scenarios

• Large-screen industrial control and HMI
• Outdoor field operations in harsh environments
• Logistics, warehouse management and scanning workflows
• Factory floor inspection and maintenance

Technical Data / Specifications

• Model: ST10-T
• OS: Android 13.0
• Processor: Unisoc T616 (T606 optional)
• Display: 10.1" TFT 1200×1920, 350 nits TYP / 400 nits MAX
• Memory: 4GB/64GB or 8GB/128GB
• Battery: 10000mAh (38.0Wh)
• Connectivity: 4G LTE multi-band, WiFi 5, Bluetooth 5.0, NFC
• Protection: IP68, 1.2 m drop resistance
• Cameras: 5MP front / 13MP rear
• Dimensions & Weight: 250 × 166 × 14.2 mm; 800 ± 50 g
• Optional: 1D/2D barcode scanner (NLS-N1)
