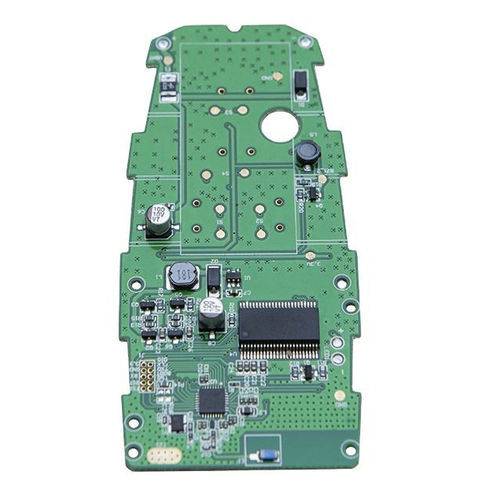

Double-sided PCB PCBA-2

for automotive applications4-layers

The PCBA Manufacturing Process: 1. Design and Layout: The first step is to design the PCB, which will serve as the foundation for the PCBA. Engineers create a digital blueprint that outlines the placement of components and traces. This blueprint is then used to generate a series of files, collectively known as Gerber files, which guide the manufacturing process. 2. Fabrication: The PCB fabrication process begins with a base material, typically a fiberglass substrate (such as FR4), which provides mechanical support and electrical insulation. The substrate is coated with a thin layer of copper, which will be etched away to form the traces. A photoresist layer is applied, and the copper is then selectively etched using a chemical process. Finally, a solder mask is added to protect the copper traces and prevent short circuits. 3. Assembly: With the PCB fabricated, it's time to populate it with electronic components. There are two main methods for attaching components to a PCB: through-hole technology (THT) and surface-mount technology (SMT). In THT, components with leads are inserted into holes drilled through the PCB and soldered on the opposite side. In SMT, components are directly soldered to the surface of the board. 4. Testing and Inspection: After assembly, the PCBA must be thoroughly tested to ensure proper functionality and reliability. This may involve visual inspection, automated optical inspection (AOI), X-ray inspection, or functional testing. Any issues detected during this phase are addressed before the PCBA is deemed ready for use.
