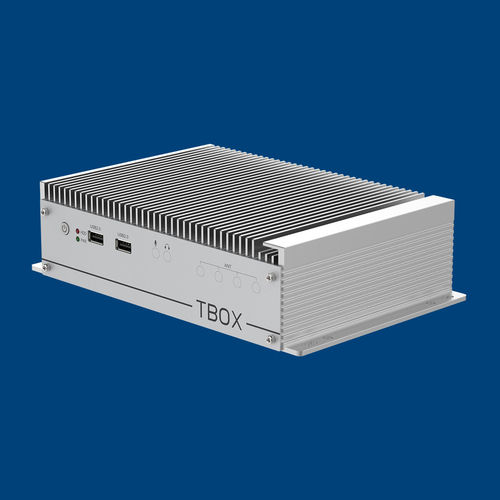

Embedded computer TBOX-2825

boxIntel® Celeron®DDR4 SDRAM

● Rugged & compact, fanless designed box structure; ● On-board Intel Whiskey Lake 8th Core i2-8265U Quad-core processor; ● Single DDR4 memory, up to 16GB, 1* M.2 and 1* 2.5” SATA storage; ● DC 12V input, optional wide voltage DC 9~36V input; ● 2 GLAN, Dual wireless expansion 4G/5G, WIFI/BT support; ● 6 USB (4 USB3.0), 6 COM (optional GPIO), 2 HDMI; ● Industrial -20 ~ + 70℃ operating range, optional -40~+80 ℃. TAICENN TBOX-2805 is a newest release high-performance fan-less industrial Box PC model, it adapts Intel Whiskey lake Celeron 4205U 1.8Ghz CPU, having advanced computer performance and low power consumption. TBOX-2805 storage can support 1 *M.2 SATA 2242/2280 and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN (Intel I211) ports, 2* USB 2.0, 4* USB 3.0 port, 6* COM (Optional with 2*S485/8*GPIO); The power input is DC 12V voltage, optional wide voltage DC 9~36V power range. TAICENN TBOX-2805 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. TAICENN TBOX-2805 can be compatible with Windows10, Win11, Linux Operating system and embedded Operating system, and it is also optional support dual wireless expansion for 4G/5G, WIFI/BT and WIFI6.
