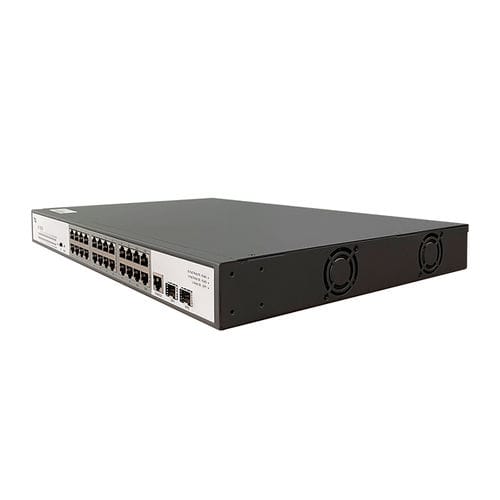

Managed ethernet switch SFG2526P

24 ports20 portslayer 2

SFG2526P is a smart PoE switch independently designed by TG. Featured with 24 IEEE 802.3at/af-compliant RJ45 ports, it supplies a maximum PoE power output of 370 W. The switch can supply power when transmitting data with APs, IP cameras, and IP phones through CAT5 cables . Featured smart management functions, POE intelligent detection, 802.1Q VLAN, link aggregation, QoS and MAC address binding, it minimizes the difficulty and cost in networking deployment.  Provide -48V DC power for powered devices (PDs), such as IP Phones, WLAN APs, and Bluetooth APs.  Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W), can supply power to PDs under these two standards;  Transmitting electronic power together with data through a single network cable, free of power lines;  Automatically detect and supply power to IEEE802.3at and IEEE 802.3af compliant powered devices(PDs);  Advanced SAFC function, only supply power to IEEE 802.3af/at compliant PDs, no worry about damaging other private standard PoE devices or devices without PoE function;  Support port power supply prioritization, guarantee the continuous power supply of key nodes;  Up to 100m network cable transmitting distance, support flexible network expansion without power line deployment concerns. Users can freely fix their wireless APs, IP cameras or other end devices on the wall or ceiling;  Built-in PSE power supply module, plug-and play design, easy to install;  High security performance defending against power surge;  Support short-circuit protection function, the switch will automatically start short-circuit function and cut off the power supply when there is high-current or other power failures,
