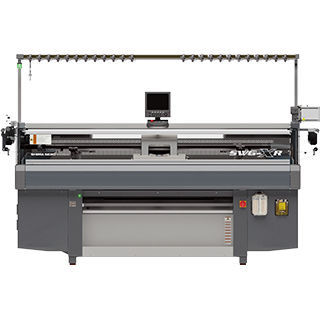

Flat knitting machine SWG-XR22

high-speedcompactcomputerized

Overview
The SWG®-XR22 is a WHOLEGARMENT horizontal knitting machine engineered for one-piece garment production, combining a 4-bed configuration with advanced carriage and control systems to support complex, high-efficiency knitwear manufacturing.

Key features

• Knitting width: 49 in (123 cm) and 55.6 in (140 cm)
• Knitting system: Ultra compact 4-system
• Gauge: 22LL
• Rapid Response R2CARRIAGE system for high-speed carriage movement
• i-DSCS + DTC integrated control systems
• 4-bed configuration for multi-dimensional patterning
• Spring-type movable sinker system
• The Original SlideNeedle for WHOLEGARMENT applications
• Auto yarn carriers for automated yarn feeding
• Takedown system for fabric handling
• Touch-sensitive color display panel
• Additional integrated functions for production flexibility

Applications

• Industrial-scale WHOLEGARMENT knitwear production
• Complex garment structures and 3D shaping
• Prototype and small-batch runs with high pattern variation
• Technical textiles requiring precise needle control

Technical specifications

• Model name: SWG®-XR22
• Manufacturer: SHIMA SEIKI
• Product type: WHOLEGARMENT horizontal knitting machine
• Knitting width: 49 in (123 cm) and 55.6 in (140 cm) options
• Knitting system configuration: Ultra compact 4-system
• Gauge: 22LL
• Bed configuration: 4-bed
• Key technologies: Rapid Response R2CARRIAGE; Spring-type movable sinker system; SlideNeedle
• Automation & yarn handling: Auto yarn carriers
• Control/interface: Touch-sensitive color display panel
• Additional systems: i-DSCS + DTC; Takedown system; other integrated units
