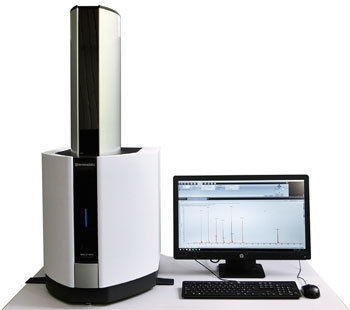

MALDI spectrometer MALDI-8020

TOF-MSMALDI-TOFlaboratory

Overview
The MALDI-8020 is a benchtop, linear MALDI-TOF (Matrix-Assisted Laser Desorption/Ionization Time-of-Flight) mass spectrometer designed for demanding laboratories requiring rapid, reliable mass measurement. It supports workflows for peptides, proteins, polymers and oligonucleotides and is suitable for QC, profiling and research applications. For Research Use Only. Not for use in diagnostic procedures.

Key features

• Linear mode (positive ion) MALDI-TOF
• 200 Hz solid-state laser, 355 nm
• Load-lock chamber for fast sample introduction
• UV laser-based source cleaning (patented) — TrueClean™ automated source cleaning
• Compact benchtop footprint
• Quiet operation (<55 dB)
• Wide-bore ion optics to minimize source contamination
• Compatible with FlexiMass™ microscope slide-format sample targets
• Operates under MALDI Solutions™ software with a centralized, secure Microsoft® SQL database (facilitates 21 CFR Part 11 workflows)
• Designed and manufactured to ISO 9001:2015 quality standards

Performance and examples
Example: a 4.2 kDa peptide demonstrating an average resolution of >5000 FWHM (resolution calculated by the software). The system provides the performance required for QC tasks and rapid mass measurement in research laboratories.

Applications (documents listed on page)
Amino Acid Sequence Analysis of Peptides Containing Modified Amino Acids Using The PPSQ-50 Gradient System — Creation Date: 2025-06-10
Amino Acid Sequencing of Synthetic Peptides Using a MALDI-TOF Mass Spectrometer and Protein Sequencer — Creation Date: 2025-04-13
Benchtop Matrix Assisted Laser Desorption Ionization Mass Spectrometry Imaging of Human Tonsil Proteins Using HiPLEX-IHC Probes — Creation Date: 2025-02-02

Technical documents (examples)
Use of Single Spot Imaging in MALDI Method Development — Creation Date: 2026-01-21
Data Quality Enhancement using Software-controlled Acquisition Strategies in MALDI-TOF MS — Creation Date: 2026-01-21
Compensation of Sample Topography Variability in MALDI-TOF MS using Lock Mass Correction — Creation Date: 2025-05-29

Notes
Examples of available downloadable documents and brochures are provided on the product page (product brochure specific to MALDI-8020 is listed among downloads).

Technical specifications

• Instrument type: Benchtop linear MALDI-TOF mass spectrometer (positive ion linear mode)
• Laser: 200 Hz solid-state laser, 355 nm
• Sample introduction: Load-lock chamber for fast sample exchange
• Source cleaning: UV laser-based automated source cleaning (patented / TrueClean™)
• Ion optics: Wide-bore ion optics to reduce contamination
• Compatibility: FlexiMass™ microscope slide-format sample targets
• Noise level: <55 dB (quiet operation)
• Software: MALDI Solutions™ with centralized Microsoft® SQL database (supports 21 CFR Part 11 workflows)
• Quality standard: Designed and manufactured to ISO 9001:2015
• Example performance: Resolution >5000 FWHM demonstrated for a 4.2 kDa peptide
