Hydraulic tarpaulin system X-Range

steel

Overview

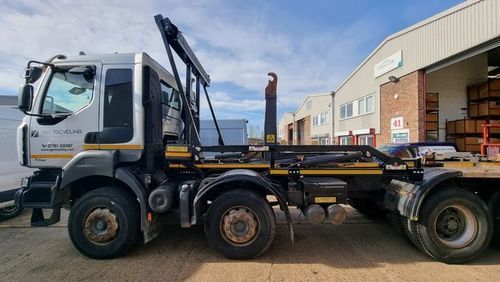

The X-Range is a hydraulic sheeting system designed for hookloaders and drawbar trailers. It extends and retracts laterally to comply with vehicle type-approval legislation. The driver can adjust the tarp mechanism safely from ground level so that a spring roller sits neatly on the rear of the container; tarpaulin side flaps are then pulled down and secured with an extending hook to retain the load.

Paint finish
Shur-Co® painted steelwork is treated through a 6-point paint process for long-term durability and colour retention: adhesive stripping, shot blasting, degreasing, zinc-rich primer, barrier protective primer and a final topcoat meeting GSB standard and Qualicoat Class 1.

Health and Safety/Compliance
All devices for securing and operating the tarpaulin are engineered for rapid, safe use from ground level and to meet relevant health and safety legislation. The system design prioritises ground-level operation to reduce operator risk and speed up load securing.

Replacement parts and support
Replacement parts for the X-Range are held in stock for next-day supply. Operator manuals and technical files are provided as downloadable resources for operators and maintenance personnel.

Technical specifications

• Product: Hydraulic sheeting system for hookloaders and drawbar trailers
• Application: Extends and retracts widthways to comply with vehicle type-approval legislation
• Operation: Adjustable and operable safely from ground level; spring roller rests on rear of container
• Load securing: Tarpaulin side flaps pulled down and secured with an extending hook
• Construction: Shur-Co® painted steelwork with 6-point paint process (adhesive stripped, shot blasted, degreased, zinc-rich primer, barrier protective primer, final coating to GSB standard, Qualicoat Class 1)
• Design focus: Rapid ground-level operation for improved health & safety and compliance
• Spare parts: Replacement parts stocked and available next day
• Support materials: Operator manual and technical files available as downloadable support
